Hybrid composites vs. ceramic matrix composites for rocket nozzles - What is The Difference?

Hybrid composites combine multiple fiber types to enhance toughness and thermal resistance, offering improved mechanical performance for rocket nozzles under extreme conditions. Ceramic matrix composites provide superior high-temperature stability and oxidation resistance, making them ideal for withstanding the intense heat and erosive environment in rocket nozzle applications.

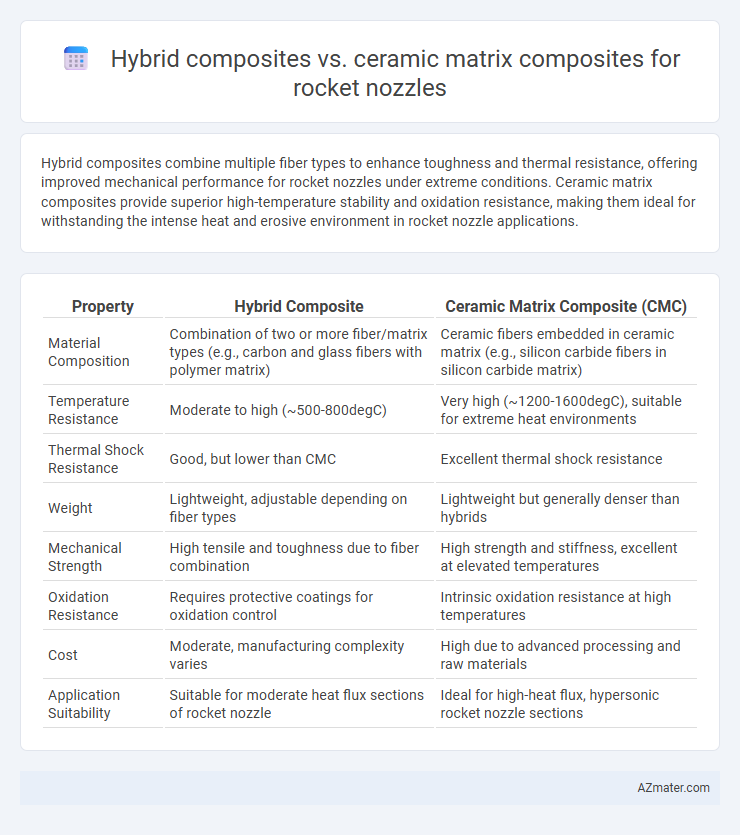

Table of Comparison

Introduction to Rocket Nozzle Materials

Rocket nozzle materials must withstand extreme thermal, mechanical, and oxidative conditions during propulsion. Hybrid composites combine fibers such as carbon and ceramic to enhance toughness and thermal resistance, while Ceramic Matrix Composites (CMCs) offer superior high-temperature stability and oxidation resistance due to their ceramic fiber reinforcement within a ceramic matrix. Selecting between hybrid composites and CMCs depends on balancing thermal performance, weight, and durability requirements specific to rocket engine design.

Overview of Hybrid Composites

Hybrid composites for rocket nozzles combine multiple reinforcement fibers, such as carbon and ceramic, to achieve an optimized balance of thermal resistance, mechanical strength, and weight reduction. These materials enhance thermal shock resistance and toughness by leveraging the complementary properties of each constituent, resulting in improved durability under extreme propulsion conditions. Hybrid composites offer tailored performance that addresses the limitations of single-fiber ceramic matrix composites, making them a versatile choice for advanced rocket nozzle applications.

Overview of Ceramic Matrix Composites

Ceramic Matrix Composites (CMCs) are advanced materials engineered to withstand extreme temperatures and thermal shock, making them ideal for rocket nozzle applications. Their ceramic fibers embedded in a ceramic matrix provide high strength, oxidation resistance, and reduced weight compared to traditional metal alloys. CMCs offer superior thermal stability and erosion resistance, crucial for enhancing rocket engine performance and longevity.

Thermal Performance Comparison

Hybrid composites offer enhanced thermal shock resistance and lower thermal conductivity compared to ceramic matrix composites (CMCs), making them suitable for rapid temperature fluctuations in rocket nozzles. Ceramic matrix composites exhibit superior high-temperature stability and oxidative resistance above 1,500degC, maintaining structural integrity under extreme thermal loads. The balance of thermal insulation in hybrids and the fracture toughness in CMCs influences nozzle lifespan and performance during prolonged rocket engine burns.

Mechanical Strength and Durability

Hybrid composites offer enhanced mechanical strength by combining fibers like carbon and glass, providing balanced toughness and flexibility crucial for rocket nozzle performance under thermal stress. Ceramic matrix composites (CMCs) exhibit superior durability at extreme temperatures due to their excellent thermal stability and resistance to oxidation, making them ideal for high-heat rocket nozzle environments. The choice between hybrid and ceramic matrix composites depends on the specific thermal and mechanical load requirements, with CMCs excelling in high-temperature endurance and hybrids offering improved damage tolerance.

Erosion and Ablation Resistance

Hybrid composites offer enhanced erosion and ablation resistance in rocket nozzles by combining high-strength fibers with thermally stable matrices, improving damage tolerance under extreme thermal and mechanical loads. Ceramic matrix composites (CMCs) provide superior performance due to their inherent high-temperature stability, oxidation resistance, and lower density, making them highly effective in minimizing material loss during high-velocity particle impact and intense thermal gradients. Comparative studies indicate CMCs outperform hybrid composites in prolonged operational environments, offering longer nozzle lifespan and improved reliability in advanced rocket propulsion systems.

Manufacturing Processes and Scalability

Hybrid composites for rocket nozzles typically involve combining carbon fibers with polymer or metal matrices, allowing more straightforward manufacturing through techniques like filament winding and resin transfer molding, which support moderate scalability. Ceramic matrix composites (CMCs) require high-temperature processing methods such as chemical vapor infiltration or slurry infiltration, offering superior thermal resistance but posing challenges in scalability due to complex equipment and longer cycle times. Manufacturing hybrid composites benefits from existing industrial infrastructure, enabling cost-effective production at scale, while CMCs demand specialized facilities limiting mass production but providing enhanced performance in extreme thermal environments.

Cost Analysis and Affordability

Hybrid composites offer a cost-effective solution for rocket nozzles by combining affordable polymer-based composites with selective ceramic reinforcements, reducing overall material expenses compared to pure ceramic matrix composites (CMCs). Ceramic matrix composites provide superior high-temperature resistance and durability but involve higher manufacturing costs due to complex processing techniques and expensive raw materials. Evaluating affordability, hybrid composites balance performance with lower production costs, making them attractive for applications with budget constraints, while CMCs are preferred for missions demanding extreme thermal endurance despite their premium price.

Applications in Modern Rocketry

Hybrid composites offer superior thermal shock resistance and lightweight properties ideal for rocket nozzles exposed to fluctuating temperatures and mechanical stresses. Ceramic matrix composites provide exceptional high-temperature stability and oxidation resistance crucial for nozzles facing extreme combustion environments beyond 1500degC. Modern rocketry applications often favor ceramic matrix composites for reusable engines due to their durability, while hybrid composites are utilized in expendable launch systems prioritizing cost-effective thermal protection.

Future Trends in Rocket Nozzle Materials

Hybrid composites and ceramic matrix composites (CMCs) are emerging as critical materials in rocket nozzle design due to their exceptional thermal resistance and mechanical strength at high temperatures. Future trends emphasize the integration of nano-engineered reinforcements and additive manufacturing techniques to enhance the thermal shock resistance and reduce the weight of these composites. Research is also focused on developing multifunctional hybrid composites that combine the toughness of polymers with the heat endurance of ceramics for next-generation nozzle applications.
