Bentonite vs. Attapulgite for Drilling - What is The Difference?

Bentonite offers superior swelling properties and high viscosity, making it ideal for stabilizing boreholes in drilling operations. Attapulgite provides better suspension and filtration control in water-based muds, enhancing drilling fluid performance in high-temperature environments.

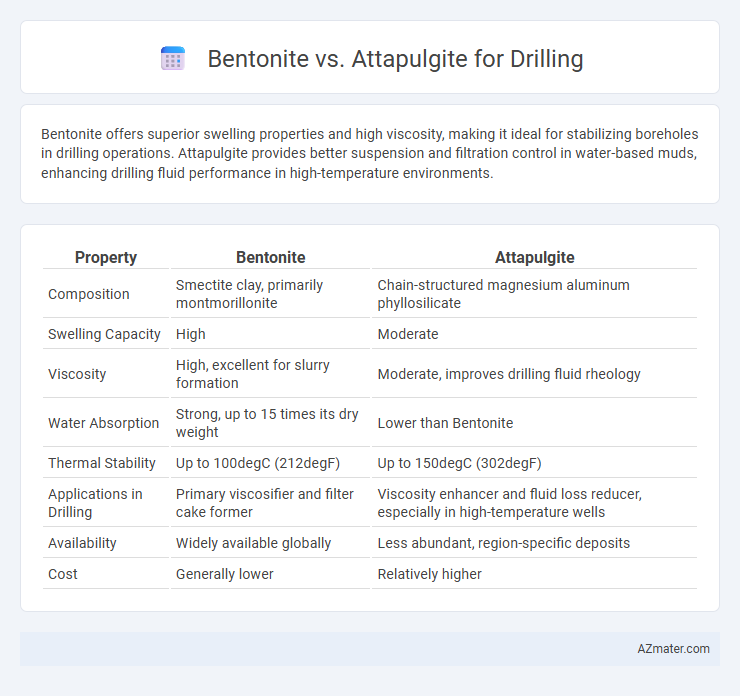

Table of Comparison

Introduction to Bentonite and Attapulgite

Bentonite is a highly absorbent clay primarily composed of montmorillonite, widely used in drilling fluids for its excellent swelling properties and thixotropic behavior that stabilizes boreholes and enhances cuttings suspension. Attapulgite, also known as palygorskite, is a magnesium aluminum silicate clay characterized by a fibrous structure and high adsorption capacity, enabling it to improve the rheological properties of drilling muds and increase fluid loss control. Both minerals serve critical roles in drilling operations, with Bentonite preferred for its superior viscosity and gel strength, while Attapulgite offers enhanced fluid loss management and thermal stability.

Chemical and Physical Properties Comparison

Bentonite exhibits high swelling capacity and strong thixotropic properties due to its montmorillonite content, enhancing borehole stability and fluid viscosity in drilling operations. Attapulgite, composed primarily of magnesium aluminum phyllosilicate, has a lower swelling capacity but offers superior sedimentation resistance and shear thinning behavior, improving suspension of cuttings and mud stability. Chemically, bentonite has a higher cation exchange capacity (CEC), facilitating better contaminant adsorption, while attapulgite's fibrous structure provides increased thermal stability and improved filtration control in high-temperature drilling environments.

Sources and Availability of Bentonite and Attapulgite

Bentonite primarily originates from volcanic ash deposits altered by hydrothermal activity, with major sources in the United States, India, and Turkey, ensuring broad global availability for drilling applications. Attapulgite, a fibrous clay mineral, is predominantly mined from sedimentary deposits in the southeastern United States, especially Georgia, with more limited global reserves compared to bentonite. The extensive geographic distribution and higher volume of bentonite deposits make it more readily available and economically viable than attapulgite for widespread drilling operations.

Performance in Drilling Fluid Applications

Bentonite provides superior viscosity and gel strength, making it highly effective for stabilizing boreholes and suspending drill cuttings in drilling fluid applications. Attapulgite offers better thixotropic properties and enhanced suspension capabilities under high-temperature conditions, improving fluid retention and minimizing fluid loss. Performance choice depends on drilling environment, with Bentonite favored for water-based muds and Attapulgite preferred in high-temperature or chemically aggressive formations.

Rheological Behavior and Suspension Stability

Bentonite exhibits superior rheological behavior in drilling fluids due to its high swelling capacity and gel-forming ability, which enhances viscosity and yield stress critical for efficient cuttings transport. Attapulgite, while offering good suspension stability through its needle-like clay mineral structure, generally provides lower viscosity and weaker gel strength, resulting in less robust suspension properties under high shear conditions. The combined use of Bentonite and Attapulgite can optimize drilling fluid performance by balancing Bentonite's strong gelation with Attapulgite's improved stability and filtration control.

Filtration Control Capabilities

Bentonite exhibits superior filtration control capabilities in drilling due to its high swelling capacity and strong colloidal properties, which create a robust filter cake minimizing fluid loss. Attapulgite, while providing good viscosity and suspension properties, generally offers less effective filtration control compared to Bentonite because of its lower swelling potential and weaker filter cake formation. Optimizing drilling fluid formulas with Bentonite enhances wellbore stability and reduces filtration rates, making it the preferred choice for challenging drilling environments.

Environmental Impact and Safety Considerations

Bentonite exhibits strong environmental compatibility due to its natural, non-toxic composition and excellent swelling properties that minimize fluid leakage in drilling operations, thereby reducing soil and water contamination risks. Attapulgite, while effective as a viscosifier and absorbent, has a more limited swelling capacity and may require chemical additives to enhance performance, potentially increasing environmental hazards. Safety considerations favor bentonite because its inert nature lowers the risk of respiratory issues during handling compared to attapulgite, which can generate finer dust particles posing inhalation concerns for workers.

Cost Analysis and Economic Factors

Bentonite offers superior swelling properties and viscosity for drilling fluid, but its higher cost compared to attapulgite impacts overall project budgets. Attapulgite, while less effective in fluid stability, is more economical, making it suitable for budget-conscious drilling operations in stable geological formations. Cost analysis must weigh bentonite's performance benefits against attapulgite's affordability to optimize drilling economics and efficiency.

Industry Preferences and Field Usage Trends

Bentonite remains the dominant choice for drilling mud due to its superior swelling properties, high viscosity, and effective suspension capabilities, making it ideal for most oil and gas drilling operations worldwide. Attapulgite, while less commonly used, is favored in specific applications requiring enhanced filtration control and thermal stability, particularly in geothermal drilling or arid environments. Industry trends indicate growing adoption of blended formulations combining bentonite and attapulgite to optimize drilling performance and reduce operational costs across diverse field conditions.

Conclusion: Choosing the Right Clay for Drilling

Bentonite offers superior swelling properties and excellent fluid loss control, making it ideal for water-based drilling muds that require high viscosity and stability. Attapulgite provides better filtration control and high-temperature tolerance, suitable for challenging drilling conditions with lower rheological demands. Selecting the right clay depends on the specific drilling environment, with Bentonite favored for wellbore stability and Attapulgite preferred for enhancing filtrate control under extreme heat.
