Magnetic ceramic vs. lead zirconate titanate for piezoelectric devices - What is The Difference?

Magnetic ceramics exhibit lower piezoelectric coefficients compared to Lead Zirconate Titanate (PZT), which remains the industry standard for high-performance piezoelectric devices due to its superior electromechanical coupling and stability. Lead Zirconate Titanate offers enhanced sensitivity and durability, making it ideal for sensors, actuators, and energy harvesting applications.

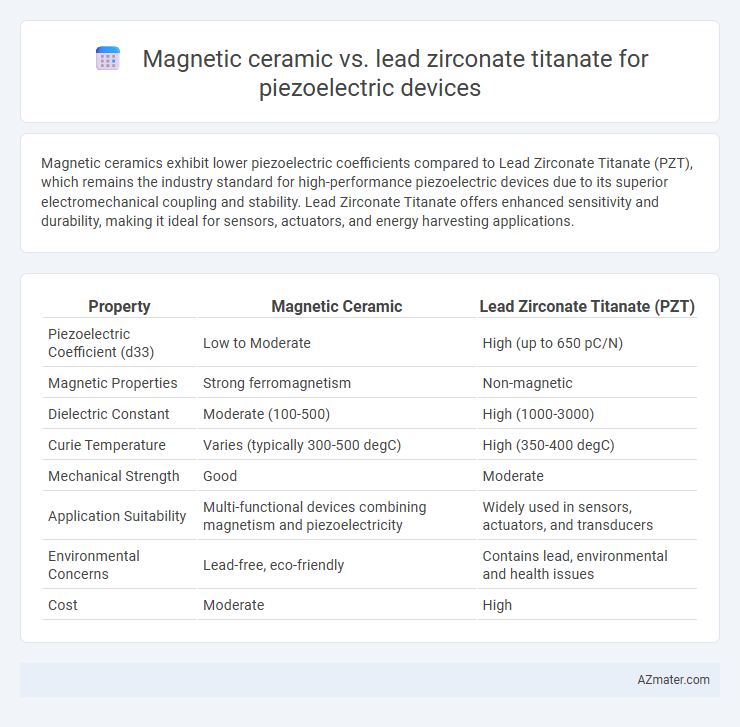

Table of Comparison

Introduction to Piezoelectric Materials

Magnetic ceramics and lead zirconate titanate (PZT) are key materials in piezoelectric devices, each offering distinct properties for energy conversion between mechanical and electrical signals. PZT, a ferroelectric ceramic, exhibits high piezoelectric coefficients and stability, making it the most widely used material in sensors, actuators, and transducers. Magnetic ceramics, often based on multiferroic systems, provide coupling between magnetic and electric order parameters, enabling multifunctional piezoelectric applications but typically with lower piezoelectric efficiency compared to PZT.

Overview of Magnetic Ceramics

Magnetic ceramics, primarily composed of ferrite materials such as barium ferrite or spinel ferrites, exhibit strong magnetic properties and insulating behavior, making them suitable for applications like inductors, transformers, and sensors. Unlike lead zirconate titanate (PZT), which is a piezoelectric ceramic with high electromechanical coupling coefficients used extensively in actuators and transducers, magnetic ceramics are valued for their magnetic permeability, high electrical resistivity, and thermal stability. Their multifunctional characteristics enable integration into devices where both magnetic and piezoelectric responses are required, although magnetic ceramics generally exhibit lower piezoelectric performance compared to PZT.

Understanding Lead Zirconate Titanate (PZT)

Lead Zirconate Titanate (PZT) is a widely utilized piezoelectric ceramic known for its exceptional electromechanical coupling and high piezoelectric coefficients, making it ideal for sensors and actuators. Unlike magnetic ceramics, which rely on magnetostrictive properties, PZT operates through the direct conversion of mechanical stress into electrical charge, offering superior sensitivity and stability. Its perovskite crystal structure and tunable composition enable precise control over piezoelectric performance, critical for advanced piezoelectric device applications.

Material Structure and Composition Comparison

Magnetic ceramics typically consist of ferrite compounds such as barium ferrite or strontium ferrite, featuring a crystalline spinel or hexagonal structure that fosters magnetic ordering but offers limited piezoelectric response. Lead zirconate titanate (PZT) exhibits a perovskite crystal structure composed of lead, zirconium, and titanium oxides, which facilitates strong piezoelectric effects due to its polar lattice distortions and domain wall mobility. The compositional flexibility of PZT allows precise tuning of piezoelectric coefficients, making it superior in piezoelectric performance compared to inherently non-piezoelectric magnetic ceramics with rigid magnetic lattice configurations.

Piezoelectric Properties: Magnetic Ceramics vs PZT

Magnetic ceramics generally exhibit lower piezoelectric coefficients compared to lead zirconate titanate (PZT), which remains the benchmark material due to its high piezoelectric constant (d33 values often exceeding 300 pC/N). PZT's superior electromechanical coupling and high Curie temperature enable robust and efficient energy conversion, outperforming most magnetic ceramics that typically show weaker piezoelectric response due to their intrinsic magnetic ordering interfering with polarization switching. Although magnetic ceramics offer multifunctional properties such as magnetoelectric coupling, their piezoelectric sensitivity and strain response are significantly lower than those of PZT, limiting their use in high-performance piezoelectric devices.

Efficiency and Performance Metrics

Magnetic ceramics exhibit lower piezoelectric coefficients and reduced energy conversion efficiency compared to Lead Zirconate Titanate (PZT), which remains the industry standard due to its high electromechanical coupling factors and superior dielectric properties. PZT outperforms magnetic ceramics in key performance metrics such as piezoelectric charge constant (d33), dielectric permittivity, and mechanical quality factor, enabling higher sensitivity and power output in piezoelectric devices. Despite magnetic ceramics offering advantages in thermal stability and mechanical robustness, their overall efficiency and performance metrics fall short of PZT in most piezoelectric sensor and actuator applications.

Durability and Mechanical Stability

Magnetic ceramics exhibit superior mechanical stability and enhanced durability under cyclic stress compared to lead zirconate titanate (PZT), making them ideal for high-stress piezoelectric applications. While PZT offers high piezoelectric coefficients, its brittleness and susceptibility to fatigue limit long-term mechanical performance. Magnetic ceramics provide improved resistance to crack propagation and thermal degradation, ensuring consistent piezoelectric response over extended operational cycles.

Environmental and Safety Considerations

Magnetic ceramics offer a non-toxic alternative to Lead Zirconate Titanate (PZT), which contains lead, a hazardous heavy metal with significant environmental and health risks during manufacturing and disposal. Unlike PZT, magnetic ceramics do not pose lead contamination issues, making them more eco-friendly and suitable for applications with stringent safety standards. The reduction of toxic waste and safer handling processes position magnetic ceramics as a sustainable choice for piezoelectric devices in compliance with environmental regulations.

Applications in Modern Piezoelectric Devices

Magnetic ceramics like nickel zinc ferrites are increasingly utilized in modern piezoelectric devices for high-frequency applications due to their excellent magnetic permeability and low eddy current losses. Lead zirconate titanate (PZT) remains a dominant piezoelectric material in sensors, actuators, and transducers, offering superior piezoelectric coefficients and high Curie temperature for consistent performance. Advances in integrating magnetic ceramics with PZT enable multifunctional devices, enhancing energy harvesting, vibration control, and wireless communication technologies.

Future Prospects: Innovations and Trends

Magnetic ceramics are emerging as promising materials for piezoelectric devices due to their multifunctional properties, enabling simultaneous magnetic and piezoelectric responses that expand applications in sensors and actuators. Lead zirconate titanate (PZT) remains dominant for its high piezoelectric coefficients and stability, but future trends emphasize lead-free alternatives to address environmental concerns. Innovations in nanostructuring and doping aim to enhance the performance and integration capabilities of both materials, driving advancements in energy harvesting, biomedical devices, and smart systems.
