azmater.com Electric ceramic heating elements offer high electrical insulation and thermal stability, making them ideal for precise temperature control. Silicon carbide heating elements provide superior thermal conductivity and durability at high temperatures, enhancing efficiency and lifespan in industrial applications.
Table of Comparison
| Property | Electric Ceramic | Silicon Carbide (SiC) |
|---|---|---|
| Operating Temperature | Up to 1200degC | Up to 1600degC |
| Thermal Conductivity | Low to Medium (2-5 W/m*K) | High (120-200 W/m*K) |
| Electrical Resistivity | High (Insulating) | Moderate (Semiconducting) |
| Mechanical Strength | Moderate | High |
| Thermal Shock Resistance | Low to Moderate | High |
| Corrosion Resistance | Good in oxidizing atmospheres | Excellent in harsh environments |
| Cost | Lower | Higher |
| Typical Applications | Low to mid-temperature heating elements, insulation | High temperature furnaces, industrial heating, silicon processing |
Introduction to Electric Ceramic and Silicon Carbide Heating Elements
Electric ceramic heating elements, typically made from metal oxides like magnesium or aluminum oxide, offer excellent electrical insulation and high thermal stability, making them ideal for precise temperature control in low to medium temperature applications. Silicon carbide heating elements provide superior thermal conductivity, durability, and can withstand extreme high temperatures up to 1600degC, which is essential for industrial furnaces and kilns requiring fast heating rates and long service life. Both materials are chosen based on temperature range, thermal shock resistance, and application-specific performance demands in heating technologies.
Material Composition and Structural Differences
Electric ceramic heating elements typically consist of aluminum oxide (Al2O3) or other metal oxides, offering high electrical insulation and thermal stability. Silicon carbide heating elements are made from silicon carbide crystals, providing exceptional thermal conductivity and mechanical strength due to their covalent bonding and crystalline structure. The structural difference lies in ceramic elements being polycrystalline with grain boundaries, while silicon carbide elements possess a more robust, dense lattice that enhances resistance to thermal shock and oxidation.
Thermal Conductivity and Efficiency Comparison
Electric ceramic heating elements typically offer moderate thermal conductivity around 2-5 W/m*K, resulting in slower heat transfer but stable temperature maintenance. Silicon carbide elements exhibit higher thermal conductivity, approximately 120 W/m*K, enabling rapid heating and greater energy efficiency in industrial applications. The enhanced thermal conductivity of silicon carbide reduces energy consumption and improves overall heating element efficiency compared to traditional electric ceramic materials.
Temperature Range and Performance
Electric ceramic heating elements typically operate efficiently within a temperature range of 1000degC to 1400degC, providing stable and consistent heat output for general industrial heating applications. Silicon carbide heating elements outperform ceramics by reaching higher temperatures up to 1600degC, offering superior thermal shock resistance, faster heat-up times, and enhanced durability under cyclic heating conditions. This makes silicon carbide elements ideal for high-performance applications requiring rapid temperature changes and extended service life.
Durability and Lifespan in Various Applications
Electric ceramic heating elements offer high durability with resistance to oxidation and thermal shock, making them ideal for precise, consistent heating in laboratory and industrial environments. Silicon carbide elements provide superior lifespan, often exceeding 10,000 hours, due to their excellent thermal conductivity, mechanical strength, and ability to withstand extreme temperatures up to 1600degC. In high-demand applications such as metal forging or kiln firing, silicon carbide outperforms electric ceramic elements by maintaining structural integrity and efficiency over prolonged use.
Energy Consumption and Cost Effectiveness
Silicon carbide heating elements offer higher energy efficiency due to their superior thermal conductivity and ability to operate at higher temperatures with less power consumption compared to electric ceramic elements. The initial cost of silicon carbide elements is higher, but their longer lifespan and reduced energy usage make them more cost-effective over time in industrial heating applications. Electric ceramic elements have lower upfront costs but tend to consume more energy and require more frequent replacement, increasing overall operating expenses.
Resistance to Chemical and Environmental Factors
Electric ceramic heating elements exhibit excellent resistance to chemical corrosion and environmental degradation, making them suitable for applications involving aggressive atmospheres and high humidity. Silicon carbide heating elements provide superior durability against oxidation and thermal shock, maintaining stability in harsh chemical environments and extreme temperature fluctuations. Both materials offer distinct advantages, with silicon carbide excelling in high-temperature oxidative conditions and electric ceramics performing well in chemically inert or mildly corrosive settings.
Suitability for Industrial vs. Domestic Use
Electric ceramic heating elements offer excellent thermal stability and uniform heat distribution, making them highly suitable for precise temperature control in industrial processes requiring moderate to high heat. Silicon carbide heating elements provide superior durability and can withstand extreme temperatures and corrosive environments, ideal for heavy-duty industrial applications such as kiln operations and metal forging. For domestic use, electric ceramic elements are preferred due to their safety, efficiency, and cost-effectiveness, whereas silicon carbide is generally over-specified and less economical for household appliances.
Maintenance, Replacement, and Safety Considerations
Electric ceramic heating elements typically require less maintenance due to their higher resistance to oxidation and thermal shock, extending their operational lifespan. Silicon carbide elements, while more durable under extreme temperatures, demand regular inspection and timely replacement to prevent material degradation and ensure consistent performance. Safety considerations highlight that silicon carbide's higher thermal conductivity reduces overheating risks, but electric ceramic elements offer superior electrical insulation, minimizing electrical hazards in heating applications.
Choosing the Right Heating Element: Electric Ceramic or Silicon Carbide
Electric ceramic heating elements provide uniform heat distribution and excellent thermal shock resistance, making them ideal for low to medium temperature applications up to 1200degC. Silicon carbide heating elements excel in higher temperature environments, reaching temperatures up to 1600degC with superior durability and faster heat-up times due to their high thermal conductivity. Choosing between electric ceramic and silicon carbide depends on specific application temperature requirements, thermal cycling needs, and energy efficiency considerations.

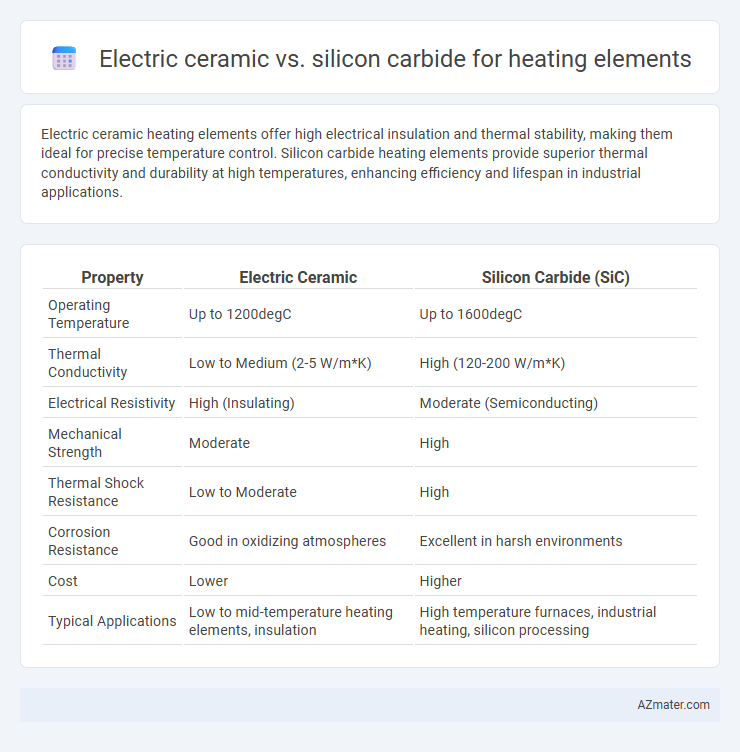

Infographic: Electric ceramic vs Silicon carbide for Heating element
