Dielectric ceramic vs. alumina for substrate - What is The Difference?

Dielectric ceramics offer higher permittivity and lower loss tangent compared to alumina, making them ideal for high-frequency substrate applications. Alumina provides superior thermal conductivity and mechanical strength, enhancing reliability in harsh environments.

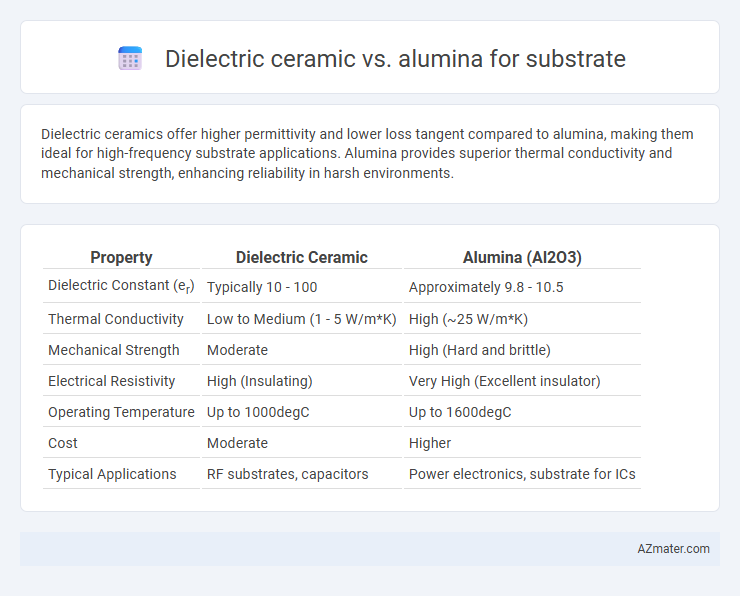

Table of Comparison

Introduction to Dielectric Ceramics and Alumina Substrates

Dielectric ceramics are materials characterized by high electrical insulation and low dielectric loss, making them ideal for use in electronic substrates where signal integrity and thermal stability are critical. Alumina, a widely used dielectric ceramic, offers excellent mechanical strength, high thermal conductivity, and chemical resistance, which enhances substrate performance in high-frequency and high-power applications. The inherent properties of alumina substrates, such as their high dielectric constant and low dissipation factor, make them a preferred choice for reliable, durable electronics in telecommunications, aerospace, and automotive industries.

Material Composition and Properties

Dielectric ceramics for substrates are primarily composed of titanium dioxide (TiO2), magnesium titanate (MgTiO3), or barium titanate (BaTiO3), offering high dielectric constants ranging from 30 to 2000, which enhances signal integrity and miniaturization. Alumina substrates consist mainly of aluminum oxide (Al2O3), exhibiting excellent thermal conductivity around 25-30 W/m*K and a stable dielectric constant near 9.8, making them ideal for high-frequency applications requiring mechanical strength and thermal stability.

Dielectric Constant Comparison

Dielectric ceramics typically exhibit a higher dielectric constant ranging from 20 to 80, making them suitable for applications requiring enhanced capacitance and miniaturization. Alumina, with a dielectric constant around 9.8 to 10.5, offers excellent electrical insulation and mechanical strength but lower permittivity compared to dielectric ceramics. The choice between these substrates depends on balancing dielectric properties, thermal stability, and application-specific requirements in RF and microwave circuit designs.

Thermal Conductivity Differences

Dielectric ceramics typically exhibit lower thermal conductivity, ranging from 1 to 10 W/m*K, compared to alumina substrates which generally offer higher thermal conductivity values between 20 to 30 W/m*K. This significant difference makes alumina more efficient for heat dissipation in electronic components, improving thermal management in high-power applications. Alumina's superior thermal conductivity ensures better performance stability and reliability under thermal stress compared to standard dielectric ceramics.

Mechanical Strength and Durability

Dielectric ceramic substrates offer superior mechanical strength with high hardness and fracture toughness compared to alumina, which provides moderate strength but excels in thermal conductivity. Alumina substrates demonstrate excellent durability under thermal cycling and mechanical stress, making them reliable for long-term applications in electronics. Dielectric ceramics typically exhibit better resistance to cracking and wear, enhancing the lifespan of components exposed to harsh environmental conditions.

Electrical Insulation Performance

Dielectric ceramics exhibit superior electrical insulation performance compared to alumina substrates due to their higher dielectric strength and lower dielectric loss, making them ideal for high-frequency applications. Alumina substrates offer excellent mechanical strength and thermal conductivity but generally have lower dielectric constants and higher dielectric loss angles, which can limit their effectiveness in advanced semiconductor devices. Optimizing substrate choice for electrical insulation performance requires balancing dielectric properties with mechanical and thermal requirements specific to the application.

Compatibility with Thick and Thin Film Technologies

Dielectric ceramics offer excellent compatibility with thick and thin film technologies due to their tailored electrical properties and stable dielectric constants, facilitating efficient signal transmission and reduced losses. Alumina substrates provide robust mechanical strength and thermal stability, making them suitable for high-temperature thick film processes but may require surface modifications to optimize adhesion for thin film deposition. Both materials support multilayer circuit integration, but dielectric ceramics typically enable finer patterning and better interface compatibility with advanced thin film techniques.

Cost and Availability

Dielectric ceramics generally offer lower costs compared to alumina substrates due to less complex manufacturing processes and more abundant raw materials. Alumina, prized for its superior thermal conductivity and mechanical strength, tends to be more expensive and has more limited availability in high-purity grades. Supply chain constraints and growing demand in high-frequency electronics further impact alumina's market price and accessibility.

Application Suitability in Electronics

Dielectric ceramic substrates exhibit high dielectric constants and low loss tangents, making them ideal for high-frequency microwave circuits and antennas requiring miniaturization and dielectric tuning. Alumina substrates offer excellent mechanical strength, thermal conductivity, and chemical stability, suitable for power electronics, insulating layers, and high-reliability electronic packaging. Selection depends on application-specific requirements such as frequency range, thermal management, and electrical insulation performance.

Choosing the Right Substrate: Dielectric Ceramic vs Alumina

Dielectric ceramic substrates offer high dielectric constants and low loss tangents, making them ideal for high-frequency and microwave applications, whereas alumina substrates provide excellent thermal conductivity and mechanical strength suitable for power electronic devices. Choosing the right substrate depends on performance requirements; dielectric ceramics excel in miniaturized circuits needing efficient signal propagation, while alumina is preferred for robust, heat-dissipating environments. Cost, thermal stability, and electrical insulation properties are key factors influencing the selection between dielectric ceramic and alumina substrates.
