Alumina vs. Silicon Carbide for Grinding Wheels - What is The Difference?

Alumina grinding wheels offer excellent durability and cost-effectiveness for general-purpose grinding on steel and cast iron, while Silicon Carbide wheels provide superior hardness and thermal conductivity, making them ideal for grinding non-ferrous metals, ceramics, and glass. Choosing between Alumina and Silicon Carbide depends on the specific material hardness and application requirements to maximize grinding efficiency and wheel life.

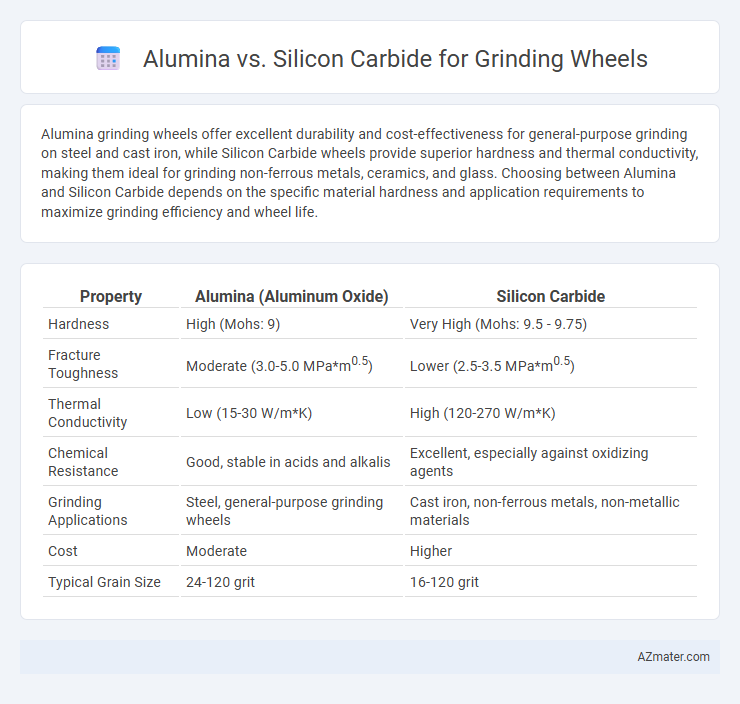

Table of Comparison

Introduction: Alumina vs Silicon Carbide Grinding Wheels

Alumina grinding wheels offer superior durability and heat resistance, making them ideal for grinding tough metals and high-speed applications. Silicon carbide wheels excel in grinding non-ferrous metals, cast iron, and non-metallic materials due to their sharper cutting edges and lower toughness. Choosing between alumina and silicon carbide depends on the material being ground and the required grinding efficiency.

Material Composition and Structure

Alumina grinding wheels consist primarily of aluminum oxide (Al2O3), offering a crystalline structure that provides excellent toughness and wear resistance for general-purpose grinding. Silicon carbide wheels are composed of silicon carbide (SiC), featuring a hexagonal crystalline structure that delivers higher hardness and sharper cutting edges, ideal for grinding non-ferrous metals and ceramics. The crystal structure and bonding differences influence the grinding wheel's ability to maintain sharpness, thermal stability, and durability under varying operating conditions.

Hardness and Wear Resistance Comparison

Alumina grinding wheels offer high hardness and strong wear resistance, making them suitable for grinding steel and other ferrous metals. Silicon carbide grinding wheels provide superior hardness compared to alumina, excelling in grinding non-ferrous metals, cast iron, and non-metallic materials due to their sharper, more brittle nature. Silicon carbide's greater wear resistance ensures longer wheel life in applications involving harder or abrasive materials, while alumina remains preferred for toughness and thermal stability in demanding industrial grinding tasks.

Grinding Efficiency and Cutting Performance

Alumina grinding wheels offer high grinding efficiency due to their toughness and ability to maintain sharp edges, making them ideal for general-purpose grinding on medium to hard steels. Silicon carbide grinding wheels provide superior cutting performance on hard, brittle materials like cast iron, non-ferrous metals, and ceramics, thanks to their greater hardness and friability. Choosing between alumina and silicon carbide depends on the material hardness and required surface finish, with alumina excelling in durability and silicon carbide outperforming in precision cutting of abrasive materials.

Suitability for Different Materials

Alumina grinding wheels excel in performing on softer metals, steel, and cast iron due to their toughness and wear resistance, making them ideal for general-purpose grinding tasks. Silicon carbide grinding wheels are better suited for grinding hard, brittle materials such as carbide, glass, ceramics, and non-ferrous metals, thanks to their sharper cutting edges and higher hardness. Selecting the appropriate wheel material based on the workpiece improves grinding efficiency, surface finish, and tool life.

Cost Analysis and Availability

Alumina grinding wheels generally offer a lower cost and higher availability compared to silicon carbide wheels, making them more suitable for budget-conscious applications. Silicon carbide wheels, while typically more expensive due to their superior hardness and sharpness, are less widely stocked, resulting in longer lead times and potentially higher procurement costs. The choice between alumina and silicon carbide depends on balancing upfront material expenses against performance benefits and sourcing logistics.

Heat Generation and Thermal Stability

Alumina grinding wheels exhibit moderate heat generation due to their lower thermal conductivity, which can lead to higher wheel temperatures during prolonged use. Silicon carbide wheels feature superior thermal stability and higher thermal conductivity, effectively dissipating heat and reducing the risk of thermal damage or wheel glazing. Consequently, silicon carbide is preferred for grinding hard, brittle materials where heat control is critical to maintaining wheel performance and workpiece integrity.

Durability and Lifespan

Silicon carbide grinding wheels offer superior hardness and thermal conductivity, resulting in enhanced durability and a longer lifespan compared to alumina wheels, especially when working with hard and brittle materials. Alumina grinding wheels excel in toughness and are more resistant to wear when used on softer metals, but they tend to wear down faster under heavy-duty or high-temperature applications. Choosing between alumina and silicon carbide depends on the specific material being ground and the operational demands, with silicon carbide providing better longevity in abrasive and heat-intensive environments.

Typical Applications and Industries

Alumina grinding wheels are predominantly used in metalworking industries for grinding steel, cast iron, and other ferrous metals, excelling in applications like surface grinding, tool sharpening, and precision machining due to their durability and heat resistance. Silicon carbide wheels are favored in non-ferrous metal industries, ceramics, and glass manufacturing, offering superior hardness and sharpness ideal for grinding brittle materials, non-metallic materials, and soft metals such as aluminum and brass. Both materials serve critical roles across automotive, aerospace, and manufacturing sectors, with alumina preferred for heavy-duty metal shaping and silicon carbide for fine finishing and material-specific shaping tasks.

Choosing the Right Grinding Wheel: Key Considerations

Alumina grinding wheels offer excellent durability and are ideal for general-purpose grinding on ferrous metals due to their toughness and thermal resistance. Silicon carbide grinding wheels provide sharper cutting edges and are better suited for grinding non-ferrous metals, cast iron, and non-metallic materials because of their hardness and brittleness. Selecting the right grinding wheel depends on material hardness, grinding application, and desired surface finish to maximize efficiency and prolong tool life.
