Lead glass vs. silica glass for fiber optics - What is The Difference?

Lead glass offers high refractive index and excellent X-ray shielding but lower UV transmission compared to silica glass, which provides superior optical clarity, low attenuation, and high thermal stability essential for fiber optic applications. Silica glass's low impurity levels and robustness make it the preferred material for long-distance fiber optic communication.

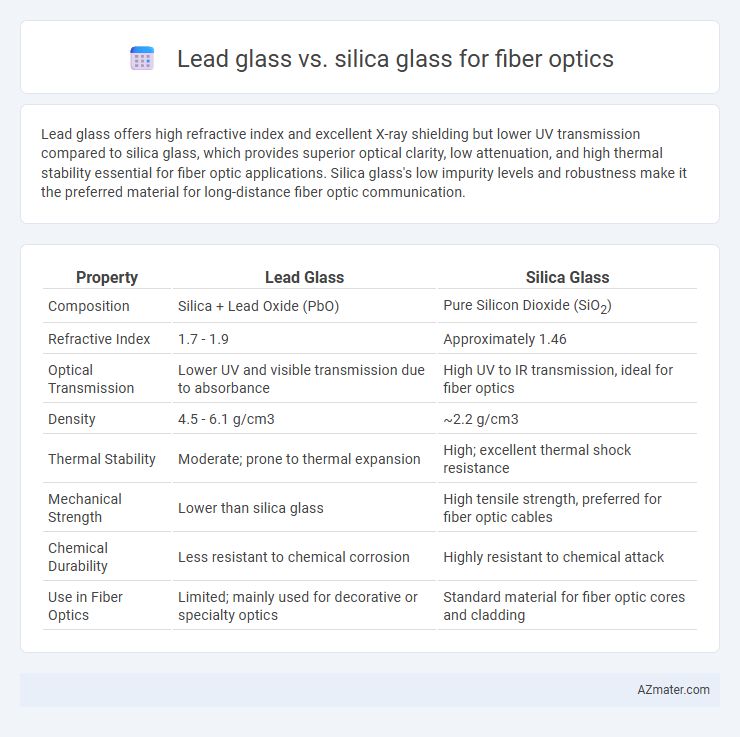

Table of Comparison

Introduction to Fiber Optic Materials

Fiber optic materials are critical in determining signal transmission quality and durability. Lead glass, characterized by its high refractive index and density, offers enhanced light bending capabilities but suffers from higher attenuation and lower chemical resistance compared to silica glass. Silica glass, with its superior purity, low optical loss, and excellent thermal and mechanical stability, remains the preferred material for most fiber optic applications, especially in telecommunications and high-speed data networks.

Overview of Lead Glass

Lead glass features high refractive indices and excellent gamma radiation shielding, making it suitable for specialized fiber optic applications requiring enhanced light control and protection. Its dense composition allows for greater attenuation of hazardous radiation compared to silica glass, which is primarily valued for its low loss and high purity in standard fiber optic communication. While silica glass dominates in telecommunications due to superior transparency and mechanical strength, lead glass offers unique advantages in medical imaging and nuclear environments where radiation resistance is critical.

Overview of Silica Glass

Silica glass, primarily composed of silicon dioxide (SiO2), is the standard material for fiber optic cores due to its exceptional transparency and low optical attenuation across a wide wavelength range. Its high chemical purity, excellent thermal stability, and mechanical strength make it ideal for long-distance signal transmission with minimal loss. Unlike lead glass, silica glass maintains superior durability and resistance to radiation, ensuring reliable performance in communication and sensing applications.

Optical Properties Comparison

Lead glass exhibits higher refractive indices ranging from 1.7 to 1.9, enhancing light-bending capabilities but increasing chromatic dispersion compared to silica glass, which has a refractive index around 1.46. Silica glass offers superior optical transparency across a broader wavelength spectrum, particularly in the near-infrared region crucial for fiber optic communication, while lead glass absorbs more at these wavelengths, limiting its optical efficiency. The low optical loss of silica glass, typically less than 0.2 dB/km, significantly outperforms lead glass, making it the preferred choice for long-distance fiber optic transmission.

Mechanical Strength and Durability

Lead glass exhibits lower mechanical strength and decreased durability compared to silica glass, making it less suitable for fiber optic applications where robustness is critical. Silica glass offers superior hardness, tensile strength, and resistance to thermal and chemical degradation, enhancing fiber optic cable longevity and performance. The inherent durability of silica glass ensures stable signal transmission under mechanical stress and harsh environmental conditions.

Transmission Loss and Signal Quality

Lead glass exhibits higher transmission loss compared to silica glass due to its increased absorption and scattering properties, making it less efficient for long-distance fiber optic communication. Silica glass offers superior signal quality with low attenuation rates, typically below 0.2 dB/km, enabling clearer and more reliable data transmission. The inherent purity and optical clarity of silica glass ensure minimal signal degradation, thereby enhancing overall fiber optic performance.

Thermal and Chemical Stability

Lead glass exhibits lower thermal stability compared to silica glass, with a lower melting point and higher thermal expansion coefficient, making it less suitable for high-temperature fiber optic applications. Silica glass offers superior chemical resistance and maintains its structural integrity under harsh environmental conditions, ensuring long-term durability in fiber optic cables. The enhanced thermal and chemical stability of silica glass ensures minimal signal loss and reliable performance in demanding fiber optic systems.

Cost-effectiveness and Manufacturing

Lead glass offers advantages in cost-effectiveness due to its lower raw material expenses and simpler manufacturing process compared to silica glass, which requires high-purity silica sources and energy-intensive melting. The manufacturing of lead glass fibers is often faster and less complex, reducing overall production costs, while silica glass fibers deliver superior optical performance but at higher material and fabrication expenditures. In fiber optic applications, selecting lead glass can reduce initial investment, though silica glass remains preferred when long-term durability and signal clarity justify the higher manufacturing cost.

Environmental and Health Considerations

Lead glass contains lead oxide, which poses significant health risks due to lead toxicity and challenges in disposal, while silica glass is chemically inert and non-toxic, making it safer for both manufacturing and end-of-life handling. The environmental impact of lead glass is higher because lead can contaminate soil and water if not properly managed; silica glass does not leach harmful substances and is more environmentally stable. In fiber optic applications, silica glass is preferred for reducing hazardous exposure and minimizing ecological footprint, aligning with stricter environmental regulations.

Application Suitability in Fiber Optics

Lead glass offers higher refractive indices and enhanced infrared transmission, making it suitable for specialized fiber optic sensors and lenses requiring precise light bending and filtering. Silica glass provides superior mechanical strength, low attenuation, and excellent thermal stability, ideal for long-distance fiber optic communication and high-power laser delivery systems. The choice between lead glass and silica glass hinges on the application's need for durability, transmission range, and optical performance in fiber optic networks.
