Borosilicate glass vs. fused silica glass for laboratory apparatus - What is The Difference?

Borosilicate glass offers superior chemical resistance and thermal shock durability, making it ideal for laboratory apparatus exposed to sudden temperature changes. Fused silica glass provides exceptional optical clarity and higher thermal stability, suitable for high-precision applications requiring extreme temperature resistance.

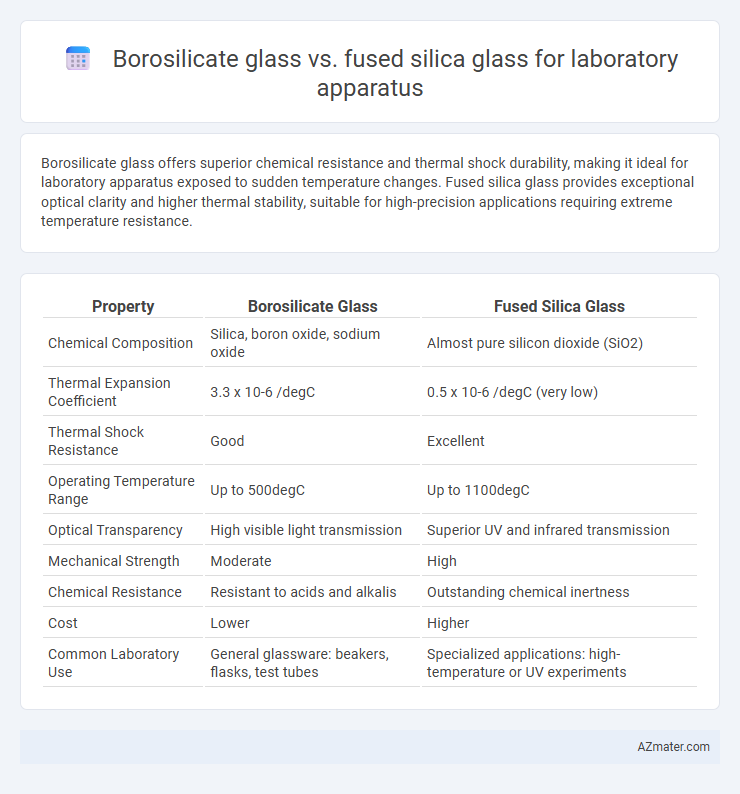

Table of Comparison

Introduction to Laboratory Glassware Materials

Borosilicate glass offers exceptional thermal resistance and chemical durability, making it a preferred choice for general laboratory glassware such as beakers and flasks. Fused silica glass provides superior purity, higher thermal shock resistance, and excellent optical properties, ideal for specialized applications requiring extreme temperature stability and minimal contamination. Selecting between borosilicate and fused silica depends on the specific laboratory requirements regarding temperature range, chemical exposure, and precision in experimental protocols.

What is Borosilicate Glass?

Borosilicate glass is a type of glass composed primarily of silica and boron trioxide, known for its exceptional thermal and chemical resistance, making it ideal for laboratory apparatus. Its low coefficient of thermal expansion minimizes the risk of cracking under rapid temperature changes, distinguishing it from fused silica glass, which has higher purity silica content but is more expensive and less resistant to certain mechanical impacts. Laboratories commonly prefer borosilicate glass for beakers, flasks, and test tubes due to its durability, affordability, and reliable performance in various chemical reactions.

What is Fused Silica Glass?

Fused silica glass is a high-purity, synthetic glass composed almost entirely of silicon dioxide (SiO2), known for its exceptional thermal stability, low thermal expansion, and superior resistance to chemical corrosion, making it ideal for laboratory apparatus exposed to extreme conditions. Unlike borosilicate glass, which contains boron oxide for enhanced thermal resistance, fused silica offers higher transparency in the ultraviolet range and greater resistance to thermal shock, crucial for precision scientific applications. Its ultra-pure composition results in minimal impurities, providing consistent performance in optical and analytical devices where contamination must be strictly controlled.

Chemical Resistance Comparison

Borosilicate glass exhibits excellent chemical resistance to acids, alkalis, and organic solvents, making it ideal for a wide range of laboratory applications. Fused silica glass offers superior resistance to hydrofluoric acid and aggressive alkalis, along with higher purity and lower ionic contamination. In scenarios requiring extreme chemical inertness and high thermal stability, fused silica outperforms borosilicate, especially in etching and semiconductor processes.

Thermal Stability and Temperature Tolerance

Borosilicate glass exhibits excellent thermal stability with a low coefficient of thermal expansion around 3.3 x 10^-6 /degC, allowing it to withstand rapid temperature changes up to approximately 500degC without cracking. Fused silica glass offers superior temperature tolerance, enduring temperatures above 1000degC thanks to its near-zero thermal expansion coefficient (~0.5 x 10^-6 /degC), making it ideal for high-precision laboratory applications requiring extreme thermal resistance. For laboratory apparatus demanding both durability and exceptional thermal shock resistance, fused silica glass provides enhanced performance over borosilicate glass in high-temperature environments.

Mechanical Strength and Durability

Borosilicate glass exhibits high mechanical strength and excellent thermal shock resistance, making it a preferred choice for laboratory apparatus that require durability under rapid temperature changes. Fused silica glass surpasses borosilicate in mechanical strength due to its higher purity and uniform structure, offering superior resistance to thermal stress and mechanical wear. Both materials provide exceptional durability, but fused silica is ideal for applications demanding extreme mechanical robustness and stability.

Optical Properties and Transparency

Borosilicate glass offers excellent optical clarity and good transparency in the visible spectrum, making it suitable for most laboratory apparatus requiring clear visual inspection. Fused silica glass surpasses borosilicate in optical properties, with superior UV transparency down to approximately 190 nm and extremely low birefringence, which is critical for high-precision optical measurements. The enhanced transparency and minimal spectral distortion of fused silica make it ideal for applications involving ultraviolet light and laser-based experiments.

Cost and Availability for Laboratories

Borosilicate glass offers a cost-effective and widely available option for laboratory apparatus, making it the preferred choice in many standard scientific settings due to its durability and chemical resistance. Fused silica glass, while providing superior thermal and optical properties, generally comes at a higher price and is less readily available, limiting its use to specialized applications requiring extreme temperature stability and UV transmission. Laboratories must balance the lower cost and easier procurement of borosilicate glass against the performance advantages and premium cost of fused silica for high-precision experiments.

Applications in Laboratory Settings

Borosilicate glass is widely used in laboratory apparatus due to its excellent thermal resistance, chemical durability, and affordability, making it ideal for beakers, flasks, and test tubes exposed to temperature fluctuations and corrosive chemicals. Fused silica glass offers superior thermal shock resistance and higher optical clarity, often preferred for specialized applications such as UV spectroscopy, high-temperature furnaces, and precision optical components. Both materials provide unique advantages, with borosilicate glass favored for routine laboratory use and fused silica glass selected for high-performance or extreme-condition experiments.

Choosing the Right Glass for Laboratory Apparatus

Borosilicate glass offers excellent chemical resistance, thermal stability up to 500degC, and affordability, making it ideal for general laboratory apparatus subjected to moderate temperature changes and chemical exposure. Fused silica glass provides superior thermal shock resistance, extremely low thermal expansion, and transparency to UV wavelengths, which is essential for high-precision applications requiring extreme temperature fluctuations and optical clarity. Selecting the right glass depends on balancing cost, thermal tolerance, chemical resistance, and specific experimental needs to ensure durability and performance in laboratory settings.
