Ultra-high-performance concrete vs. shotcrete for tunnel lining - What is The Difference?

Ultra-high-performance concrete (UHPC) offers superior compressive strength, durability, and reduced permeability compared to shotcrete, making it ideal for long-term tunnel lining applications. Shotcrete provides faster application and cost-efficiency for initial structural support but lacks UHPC's advanced mechanical properties and lifespan.

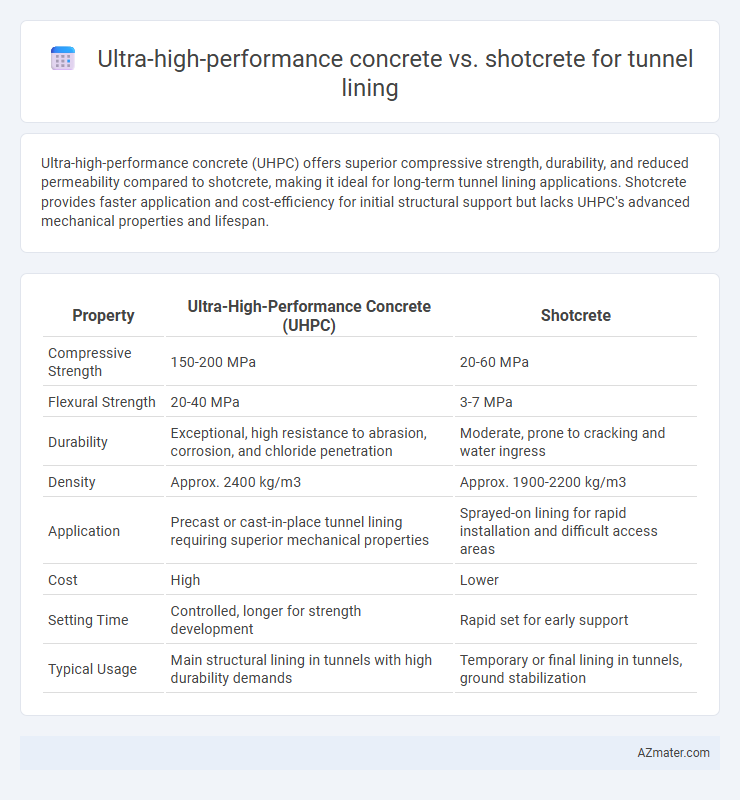

Table of Comparison

Introduction to Tunnel Lining Solutions

Ultra-high-performance concrete (UHPC) offers superior strength, durability, and reduced permeability compared to traditional shotcrete, making it ideal for tunnel lining applications requiring long service life and resistance to harsh environments. Shotcrete, known for its ease of application and adaptability to complex tunnel geometries, provides rapid placement and cost-effectiveness, but generally exhibits lower compressive strength and durability than UHPC. Selecting the appropriate material depends on specific project requirements, including structural performance, environmental conditions, and construction speed needs.

What is Ultra-High-Performance Concrete (UHPC)?

Ultra-High-Performance Concrete (UHPC) is an advanced cementitious material characterized by its exceptional compressive strength exceeding 150 MPa and high durability against chemical and physical degradation. Its dense microstructure, enhanced by fine materials and fiber reinforcement, provides superior resistance to abrasion, impact, and environmental factors compared to traditional shotcrete used in tunnel lining. UHPC's low permeability and high tensile strength contribute to improved structural performance and extended service life in demanding underground construction applications.

Understanding Shotcrete: Composition and Application

Shotcrete, a pneumatically applied concrete mixture, consists primarily of cement, aggregates, water, and often admixtures such as accelerators or fibers to enhance bonding and setting times. Its application in tunnel lining involves spraying the mixture at high velocity onto rock surfaces, ensuring rapid adherence and structural support in complex geometries. The versatility of shotcrete allows it to accommodate uneven tunnel surfaces and provides immediate stabilization, distinguishing it from ultra-high-performance concrete that requires formwork and curing time.

Key Material Properties: UHPC vs Shotcrete

Ultra-high-performance concrete (UHPC) exhibits superior compressive strength ranging from 150 to 250 MPa compared to shotcrete's typical range of 20 to 80 MPa, enabling enhanced structural durability for tunnel linings. UHPC's low permeability and high resistance to abrasion and chemical attack significantly outperform shotcrete, which tends to have higher porosity and susceptibility to environmental degradation. Moreover, UHPC features improved tensile strength and ductility due to steel fiber reinforcement, whereas shotcrete relies on conventional reinforcement methods resulting in less flexibility under dynamic loading.

Installation Techniques and Equipment Comparison

Ultra-high-performance concrete (UHPC) requires precise mixing and controlled casting processes using high-pressure pumps and automated batching systems to ensure uniform density and strength, whereas shotcrete involves pneumatically spraying concrete via specialized spray nozzles and robotic arms for rapid, flexible application on tunnel walls. Installation of UHPC demands skilled labor and stringent curing conditions, often facilitated by formwork and vibration equipment, while shotcrete allows for quicker layering and immediate adhesion without extensive formwork but may necessitate multiple passes and surface finishing tools. Equipment for UHPC typically includes high-shear mixers and pressure vibrators, contrasting with shotcrete's reliance on air compressors, spray pumps, and remote-controlled robotic sprayers tailored for complex geometries.

Structural Performance and Durability

Ultra-high-performance concrete (UHPC) exhibits superior compressive strength exceeding 150 MPa and exceptional durability characteristics, making it highly resistant to chemical attack, abrasion, and freeze-thaw cycles in tunnel lining applications. Shotcrete offers rapid application and excellent adhesion to complex tunnel geometries but generally demonstrates lower compressive strength, typically between 20-70 MPa, and moderate durability under aggressive environmental conditions. The increased fiber reinforcement in UHPC enhances toughness and crack resistance, resulting in improved long-term structural performance compared to conventional shotcrete linings.

Cost Analysis: Initial and Lifecycle Expenses

Ultra-high-performance concrete (UHPC) generally incurs higher initial costs due to advanced materials and specialized labor but offers superior durability, reducing long-term maintenance expenses for tunnel lining applications. Shotcrete provides a more cost-effective upfront solution with faster application and lower material costs; however, its potentially higher susceptibility to wear and environmental factors can lead to increased lifecycle repair and rehabilitation expenses. Evaluating total cost of ownership must consider these trade-offs, factoring in expected service life, maintenance frequency, and structural performance requirements for optimized tunnel lining economics.

Environmental Impact and Sustainability

Ultra-high-performance concrete (UHPC) offers superior durability and reduced permeability compared to shotcrete, significantly extending tunnel lining lifespan and lowering maintenance needs, which contributes to a smaller carbon footprint over time. UHPC's dense microstructure enables the use of less material volume, reducing raw material extraction and associated environmental degradation, while shotcrete generally requires more frequent repairs and higher cement content, increasing CO2 emissions. The sustainability of UHPC in tunnel lining is further enhanced by its compatibility with recycled aggregates and supplementary cementitious materials, promoting circular economy principles in tunnel construction.

Application Suitability in Various Tunnel Scenarios

Ultra-high-performance concrete (UHPC) offers superior compressive strength, durability, and abrasion resistance, making it highly suitable for long-span tunnels and high-stress environments requiring thin, resilient linings. Shotcrete, typically quicker to apply and adaptable to irregular surfaces, excels in preliminary supports, complex geometries, and rapid stabilization during tunnel excavation. Choosing between UHPC and shotcrete depends on factors such as tunnel size, structural requirements, environmental exposure, and construction speed demands to optimize lining performance and longevity.

Future Trends in Tunnel Lining Technologies

Ultra-high-performance concrete (UHPC) offers superior durability, higher compressive strength exceeding 150 MPa, and enhanced resistance to chemical attacks compared to shotcrete, making it a leading choice for future tunnel lining applications. Advances in UHPC formulations, including fiber reinforcement and nanomaterial integration, are driving innovations that extend service life and reduce maintenance costs in tunnel infrastructure. Emerging technologies emphasize the combination of UHPC with real-time monitoring systems and sustainable materials, signaling a shift towards smarter, longer-lasting tunnel linings.
