azmater.com Self-compacting concrete ensures superior flowability and eliminates segregation, enhancing beam casting efficiency and surface finish. High-strength concrete provides greater compressive strength, improving load-bearing capacity and structural durability of beams.
Table of Comparison
| Property | Self-Compacting Concrete (SCC) | High-Strength Concrete (HSC) |
|---|---|---|
| Definition | Highly flowable concrete that consolidates under its own weight without mechanical vibration | Concrete with compressive strength typically above 50 MPa, designed for structural efficiency |
| Compressive Strength | Typically 30-50 MPa | 50 MPa and above |
| Workability | Excellent flowability and passing ability, ideal for complex formwork | Lower flowability, requires vibration for consolidation |
| Application in Beams | Ensures uniform filling and reduces honeycombing in congested reinforcement | Used where high load-bearing capacity and reduced beam sizes are required |
| Durability | High durability due to dense matrix and low segregation | Very high durability, especially under aggressive environments |
| Cost | Moderate, often higher than conventional concrete due to additives | Higher, due to premium materials and mix design |
| Setting time | Typically standard, adjustable with admixtures | May be longer or shorter depending on mix and additives |
Introduction to Self-Compacting and High-Strength Concrete
Self-compacting concrete (SCC) is a highly flowable, non-segregating material that can spread into place and encapsulate reinforcement without mechanical vibration, enhancing workability and reducing labor costs in beam construction. High-strength concrete (HSC) is designed to achieve compressive strengths typically above 60 MPa, providing superior load-bearing capacity and durability for structural components such as beams. Both SCC and HSC contribute to optimized beam performance, with SCC offering ease of placement and HSC delivering enhanced mechanical properties.
Key Properties and Composition
Self-compacting concrete (SCC) is engineered for high flowability and segregation resistance, incorporating fine particles like fly ash and superplasticizers to ensure easy placement without vibration, making it ideal for complex beam forms. High-strength concrete (HSC) emphasizes compressive strength above 50 MPa through low water-cement ratios and high cementitious content, often enhanced with silica fume or quartz powder to improve density and durability in load-bearing beams. Both SCC and HSC exhibit tailored compositions, but SCC prioritizes workability and uniformity, while HSC focuses on maximizing load capacity and long-term structural performance.
Workability and Placement Methods
Self-compacting concrete (SCC) offers superior workability due to its high flowability and ability to fill intricate beam formworks without vibration, making it ideal for complex reinforcement layouts. High-strength concrete (HSC) typically requires mechanical vibration during placement to ensure proper compaction and avoid voids, which can be challenging in congested beam sections. The ease of placement with SCC reduces labor costs and enhances quality control, while HSC emphasizes load-bearing capacity but demands careful handling to maintain structural integrity.
Mechanical Strength Comparisons
Self-compacting concrete (SCC) offers excellent workability and uniformity with compressive strengths typically ranging from 30 to 70 MPa, making it suitable for complex beam structures requiring ease of placement and minimal vibration. High-strength concrete (HSC) generally achieves compressive strengths above 70 MPa, often exceeding 100 MPa, providing superior load-bearing capacity and durability for beams subjected to heavy structural loads. The mechanical strength comparison highlights that while SCC optimizes constructability with moderate strength, HSC delivers enhanced mechanical performance critical for high-demand beam applications.
Durability and Longevity in Beams
Self-compacting concrete (SCC) enhances durability in beams by improving aggregate packing density and reducing voids through its high flowability, leading to superior resistance against corrosion and environmental degradation. High-strength concrete (HSC), characterized by its low water-cement ratio and high compressive strength, provides increased mechanical performance but may require careful curing to prevent microcracks that impact long-term durability. Choosing SCC for beam applications often results in improved longevity due to its consistent compaction and crack resistance, whereas HSC beams offer strength benefits but may need supplementary treatments to ensure equivalent durability.
Structural Performance in Beam Applications
Self-compacting concrete (SCC) enhances structural performance in beam applications through superior flowability, ensuring uniform compaction and eliminating honeycombing, which increases durability and load distribution. High-strength concrete (HSC) provides greater compressive strength, enabling beams to support higher loads and improve resistance to bending and shear stresses. SCC's enhanced workability reduces construction time and labor, while HSC's mechanical properties optimize beam size and weight for critical structural demands.
Construction Efficiency and Labor Requirements
Self-compacting concrete (SCC) significantly improves construction efficiency by eliminating the need for vibration, allowing for faster placement and reduced labor intensity on beam projects. High-strength concrete (HSC) requires meticulous mixing and compaction, increasing labor demand and prolonging curing times despite offering superior load-bearing capacity. SCC's fluidity and rapid setting streamline workflow and reduce manpower costs, making it ideal for complex beam geometries and congested reinforcement areas in construction sites.
Cost Analysis and Economic Considerations
Self-compacting concrete (SCC) typically incurs higher initial material costs than high-strength concrete (HSC) due to the inclusion of chemical admixtures and superior fines content, which enhance flowability without vibration. However, SCC reduces labor and time expenses by minimizing formwork vibration requirements and accelerating construction schedules, potentially offsetting its premium price. In contrast, HSC offers cost advantages where structural efficiency is critical, enabling smaller beam cross-sections and material savings but often demands specialized curing and handling, influencing overall economic feasibility.
Sustainability and Environmental Impact
Self-compacting concrete (SCC) reduces environmental impact through lowered energy consumption and minimal waste due to its flowability, eliminating the need for mechanical vibration and supporting sustainable construction practices. High-strength concrete (HSC) enables material efficiency by requiring less volume for equivalent structural performance, potentially lowering overall carbon footprint but often involves higher cement content, which can increase CO2 emissions. Selecting SCC for beams enhances sustainability by improving durability and minimizing construction noise and dust, while HSC contributes through enhanced load-bearing capacity and longevity, necessitating a balance between strength and ecological considerations.
Conclusion: Choosing the Optimal Concrete for Beams
Self-compacting concrete enhances beam construction by ensuring uniform flow and filling without vibration, ideal for complex formworks and congested reinforcement zones. High-strength concrete offers superior load-bearing capacity and durability, making it suitable for beams in high-stress structural applications. Selecting the optimal concrete for beams depends on project requirements, where self-compacting concrete prioritizes workability and finish quality, while high-strength concrete emphasizes structural performance and longevity.

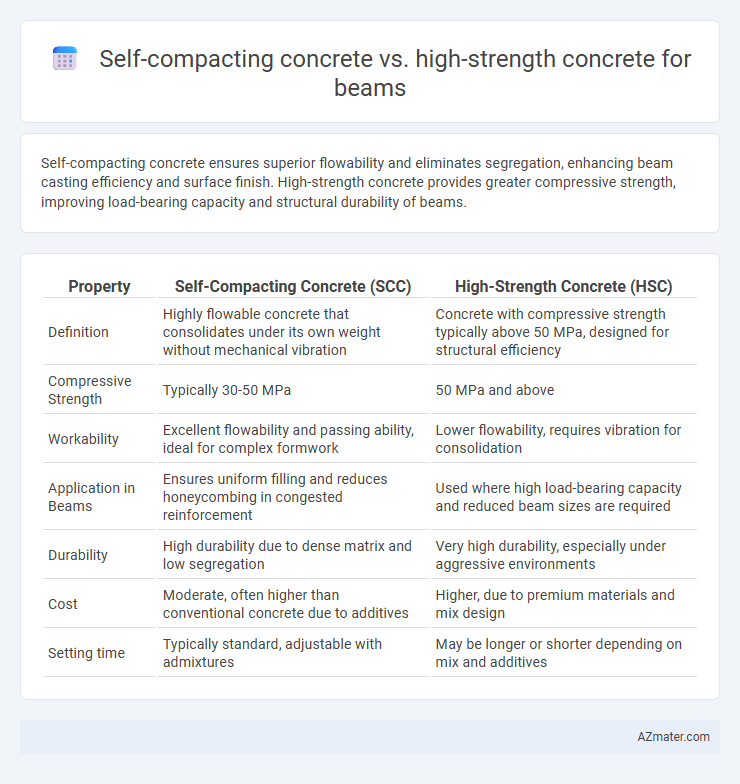

Infographic: Self-compacting concrete vs High-strength concrete for Beam
