azmater.com Reactive powder concrete offers superior compressive strength up to 200 MPa and enhanced durability compared to shotcrete, making it ideal for high-stress tunnel linings. Shotcrete provides faster application and better adaptability to irregular surfaces but generally exhibits lower strength around 30-70 MPa.
Table of Comparison
| Property | Reactive Powder Concrete (RPC) | Shotcrete |
|---|---|---|
| Compressive Strength | 120-200 MPa | 20-50 MPa |
| Durability | Very high, dense microstructure | Moderate, depends on application technique |
| Application Method | Cast in situ or precast | Sprayed directly onto surface |
| Setting Time | Standard to accelerated | Fast setting |
| Water Permeability | Very low, less than 1x10^-12 m/s | Higher, varies with mix and application |
| Cost | High | Moderate to low |
| Typical Use in Tunnel Lining | Structural lining requiring high strength and durability | Initial lining and ground support |
| Reinforcement Compatibility | Good with steel fibers | Good with steel mesh and fibers |
Overview of Tunnel Lining Materials
Reactive powder concrete (RPC) offers superior compressive strength, durability, and reduced porosity compared to conventional materials, making it highly effective for tunnel lining where long-term structural integrity is critical. Shotcrete, a pneumatically applied concrete, provides rapid application and excellent adhesion to irregular tunnel surfaces, ideal for initial support and lining rehabilitation. Both materials serve distinct roles in tunnel construction, with RPC emphasizing mechanical performance and shotcrete prioritizing ease of application and adaptability.
Introduction to Reactive Powder Concrete (RPC)
Reactive Powder Concrete (RPC) is an ultra-high-performance material characterized by its exceptional compressive strength exceeding 200 MPa, improved durability, and dense microstructure achieved by using fine powders, silica fume, and optimized particle packing. Unlike conventional shotcrete, RPC eliminates coarse aggregates, enabling a homogenous matrix that enhances mechanical properties and resistance to chemical attacks in tunnel lining applications. Its superior performance in terms of durability, density, and compressive strength makes RPC a preferred choice for critical tunnel linings subjected to extreme loading and environmental conditions.
Understanding Shotcrete Technology
Shotcrete technology involves pneumatically applying concrete through a hose at high velocity, allowing for rapid setting and enhanced adhesion in tunnel lining applications. Reactive powder concrete (RPC) offers superior mechanical properties and durability but requires precise mixing and curing conditions, making shotcrete more versatile and practical for complex geological formations. Understanding shotcrete's adaptability to varied substrates and its capacity for immediate support is crucial when comparing it to RPC for tunnel lining projects.
Mechanical Properties Comparison
Reactive powder concrete (RPC) exhibits superior mechanical properties compared to shotcrete for tunnel lining, including higher compressive strength often exceeding 200 MPa and enhanced tensile strength due to its ultra-fine powders and optimized particle packing. Shotcrete, while advantageous for rapid application and adaptability to irregular surfaces, typically demonstrates compressive strengths in the range of 20-80 MPa, with lower durability under long-term loading conditions. The enhanced microstructure of RPC results in improved modulus of elasticity and fracture toughness, making it more suitable for high-performance tunnel lining applications requiring increased load-bearing capacity and durability.
Durability and Longevity
Reactive powder concrete (RPC) exhibits superior durability and longevity compared to shotcrete for tunnel lining, primarily due to its ultra-high compressive strength, reduced permeability, and enhanced resistance to chemical attack and abrasion. Shotcrete, while easier to apply, generally has lower strength and higher porosity, making it more susceptible to water ingress and degradation over time in aggressive underground environments. The dense microstructure of RPC significantly extends the service life of tunnel linings by minimizing microcracking and enhancing resistance to freeze-thaw cycles and sulfate exposure.
Installation Methods and Efficiency
Reactive powder concrete (RPC) offers high compressive strength and durability, making it suitable for precast tunnel lining segments where controlled factory conditions optimize curing and reduce on-site labor. Shotcrete, applied pneumatically onto tunnel surfaces, allows for flexible and rapid installation in complex geometries, especially advantageous in challenging or irregular ground conditions. Installation efficiency of RPC relies on precise casting and curing times, while shotcrete provides immediate support and faster setting, reducing overall construction duration in tunnel lining projects.
Cost Analysis and Economic Considerations
Reactive powder concrete (RPC) offers superior mechanical properties and durability for tunnel lining but incurs higher material and production costs compared to shotcrete. Shotcrete provides a cost-effective and faster application method, especially suitable for complex geometries and urgent repairs, reducing labor and equipment expenses. Economic considerations favor shotcrete in projects with tight budgets and fast timelines, while RPC's long-term durability may lower maintenance and lifecycle costs in demanding environments.
Environmental Impact and Sustainability
Reactive powder concrete (RPC) offers superior durability and reduced material consumption compared to shotcrete, resulting in a lower carbon footprint for tunnel lining projects. RPC's high strength enables thinner linings, minimizing cement use and associated CO2 emissions, which enhances sustainability. Shotcrete, while versatile and rapid in application, typically requires more binder and may generate higher waste, making RPC a more environmentally favorable option for sustainable tunnel construction.
Field Performance in Tunnel Applications
Reactive powder concrete (RPC) demonstrates superior compressive strength exceeding 200 MPa and enhanced durability, making it highly suitable for tunnel linings exposed to aggressive environments and heavy loads. Shotcrete offers rapid application and excellent adhesion to irregular surfaces, facilitating efficient tunnel excavation support, but typically exhibits lower mechanical properties compared to RPC. Field performance indicates RPC provides longer service life and reduced maintenance in tunnels, while shotcrete remains preferred for initial support and areas requiring quick setting under challenging conditions.
Future Trends in Tunnel Lining Materials
Reactive powder concrete (RPC) offers superior compressive strength, durability, and reduced permeability compared to traditional shotcrete, making it ideal for long-term tunnel lining applications. Future trends emphasize the integration of RPC with advanced fiber reinforcement and nanomaterials to enhance mechanical performance and crack resistance under dynamic loads. Shotcrete advancements focus on optimizing mix designs and application techniques for faster setting times and improved adhesion, but RPC is poised to dominate due to its enhanced structural and durability properties in increasingly demanding tunnel environments.

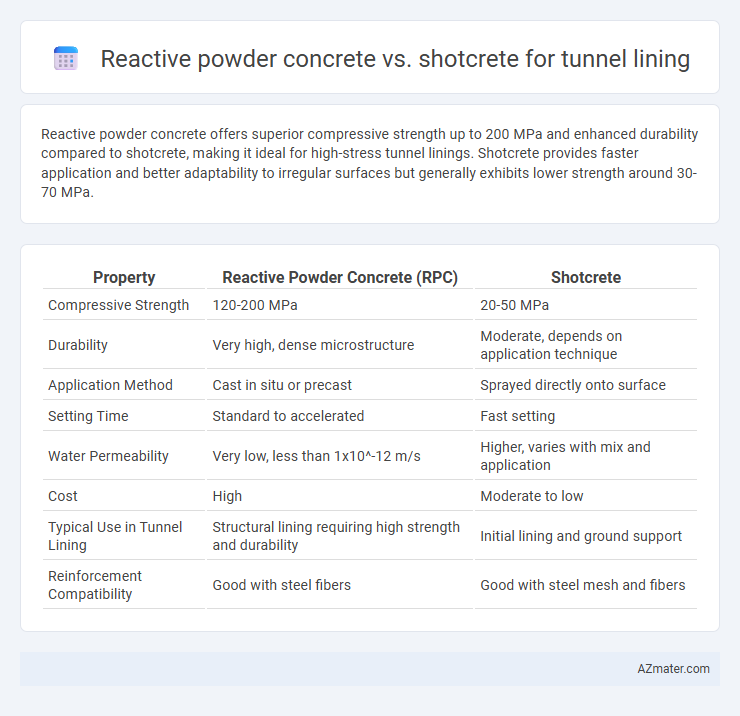

Infographic: Reactive powder concrete vs Shotcrete for Tunnel lining
