Lightweight concrete vs. mass concrete for dams - What is The Difference?

Lightweight concrete reduces overall dam weight and improves thermal insulation, while mass concrete offers high compressive strength and volume stability critical for large dam structures. Engineers select lightweight concrete for reduced foundation loads, whereas mass concrete ensures durability and resistance to cracking in gravity dams.

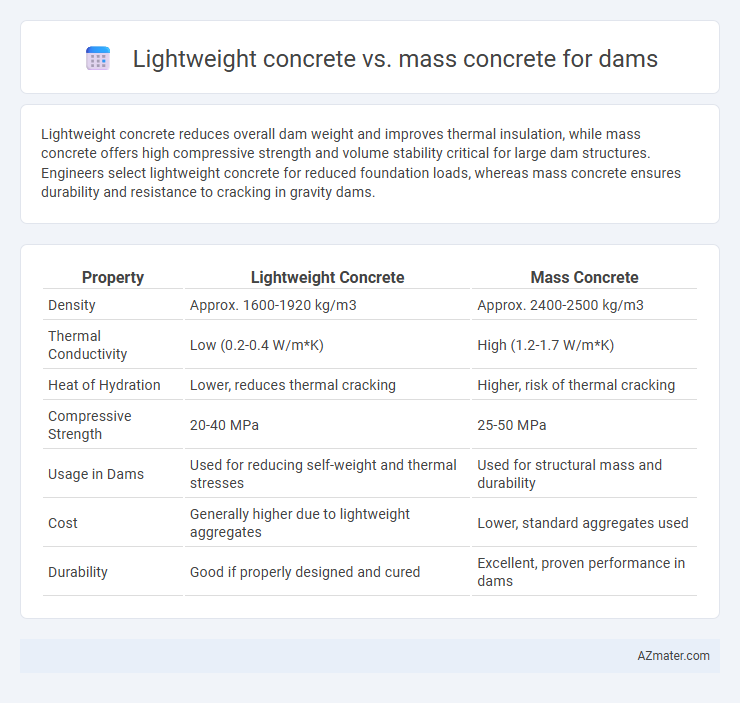

Table of Comparison

Introduction to Concrete Types in Dam Construction

Lightweight concrete for dam construction offers reduced density and enhanced thermal insulation compared to traditional mass concrete, making it ideal for minimizing structural weight and thermal stresses in large-scale projects. Mass concrete, characterized by its high density and substantial volume, provides the necessary strength and durability to withstand hydraulic pressure and environmental loads in dam structures. Selecting between lightweight and mass concrete depends on factors such as structural requirements, thermal properties, and economic considerations in dam engineering.

Defining Lightweight Concrete and Mass Concrete

Lightweight concrete is defined by its reduced density, typically between 1600 to 1920 kg/m3, achieved through the use of lightweight aggregates such as expanded clay, shale, or pumice, providing enhanced thermal insulation and lower self-weight in dam construction. Mass concrete, in contrast, refers to large volumes of concrete, often exceeding 1 cubic meter, characterized by its normal density (usually around 2400 kg/m3) and designed to withstand thermal stresses generated during the curing process without the use of reinforcement. The choice between lightweight and mass concrete in dams depends on structural requirements, thermal performance, and ease of handling during placement.

Material Composition: Lightweight vs Mass Concrete

Lightweight concrete for dams incorporates lightweight aggregates such as expanded clay, shale, or pumice, reducing density and improving thermal insulation while maintaining structural integrity. Mass concrete typically uses conventional heavy aggregates like crushed stone and gravel, resulting in higher density and thermal mass essential for withstanding compressive forces and heat generation during curing. The choice of material composition directly influences the dam's weight, thermal properties, and overall durability under load and environmental stress.

Structural Performance in Dam Applications

Lightweight concrete in dam applications offers reduced dead load, enhancing seismic resistance and reducing foundation stresses compared to mass concrete. Mass concrete provides superior compressive strength and thermal stability essential for large dam structures but is prone to thermal cracking due to heat of hydration. Structural performance in dam construction balances the lightweight concrete's durability and reduced density with the high strength and thermal control of mass concrete to optimize safety and longevity.

Thermal Properties and Temperature Control

Lightweight concrete offers superior thermal insulation compared to mass concrete, reducing the heat of hydration and minimizing temperature gradients within dam structures. The lower thermal conductivity of lightweight aggregates effectively controls internal temperature rise, thereby decreasing the risk of thermal cracking. In contrast, mass concrete exhibits higher heat generation and slower cooling rates, necessitating extensive temperature control measures such as cooling pipes and staged placement to manage thermal stresses.

Durability and Resistance to Environmental Factors

Lightweight concrete offers enhanced durability and improved resistance to environmental factors in dam construction due to its lower permeability and better thermal insulation properties compared to mass concrete. Mass concrete, while strong and cost-effective for large-scale structures, is more susceptible to cracking from thermal gradients and freeze-thaw cycles, potentially compromising long-term durability. The porous nature and reduced density of lightweight concrete also contribute to superior resistance against chemical attacks and erosion, making it a preferred choice for enduring dam environments.

Cost Implications and Economic Considerations

Lightweight concrete reduces dead load in dam construction, leading to lower foundation and support structure costs compared to mass concrete, which requires extensive formwork and long curing times that increase labor and material expenses. The thermal properties of lightweight concrete minimize thermal cracking risks, reducing repair and maintenance costs throughout the dam's lifespan, while mass concrete demands costly cooling systems and monitoring. Despite higher initial material costs for lightweight aggregates, the overall economic benefits include faster construction schedules and improved durability, often resulting in a favorable cost-benefit ratio for large dam projects.

Construction Techniques and Ease of Placement

Lightweight concrete in dam construction offers reduced material weight and improved thermal insulation, facilitating easier handling and faster placement compared to traditional mass concrete. Construction techniques for lightweight concrete often involve the use of expanded clay, shale, or slate aggregates, which enhance workability and reduce the need for extensive vibratory compaction. Mass concrete requires careful temperature control and staged pouring to prevent thermal cracking, making its placement more labor-intensive and time-consuming than the more manageable lightweight alternatives.

Suitability for Different Dam Designs

Lightweight concrete is ideal for dam designs requiring reduced dead loads and enhanced thermal insulation, such as in arch or gravity dams with seismic considerations. Mass concrete suits dams where high compressive strength and low permeability are critical, especially in gravity and buttress dam structures. Each type's material properties align with specific structural demands, influencing overall dam stability and performance.

Comparative Analysis: Lightweight vs Mass Concrete in Dams

Lightweight concrete offers reduced density and improved thermal insulation compared to mass concrete, which enhances durability and decreases thermal cracking in dam structures. Mass concrete, characterized by its high density and strength, provides superior load-bearing capacity essential for large dam foundations but is prone to internal temperature gradients causing potential cracking. The choice between lightweight and mass concrete for dams depends on balancing mechanical performance with thermal management, where lightweight concrete reduces stress from temperature variation while mass concrete ensures structural stability under extreme loads.
