azmater.com High-density concrete offers superior radiation shielding and durability for tunnel lining, while self-compacting concrete enhances workability and ensures uniform placement without vibration. Selecting between these materials depends on project requirements for structural strength versus ease of application.
Table of Comparison
| Property | High-Density Concrete (HDC) | Self-Compacting Concrete (SCC) |
|---|---|---|
| Density | High density: 3,800-4,800 kg/m3 | Normal density: 2,300-2,500 kg/m3 |
| Purpose | Radiation shielding, durability in harsh environments | Improved flowability, eliminates vibration for dense placement |
| Workability | Low flowability, requires vibration | High flowability, self-leveling |
| Placement in Tunnel Lining | Used where high mass and radiation protection needed | Ideal for complex formwork and congested reinforcement |
| Mechanical Strength | High compressive strength (50-90 MPa) | Moderate to high strength (30-70 MPa) |
| Durability | Excellent chemical and radiation resistance | Good resistance, improved homogeneity reduces defects |
| Cost | Higher material cost due to heavy aggregates | Potentially lower labor cost due to ease of placement |
| Typical Applications | Tunnels requiring radiation shielding and high mass | Tunnels with complex geometry and dense reinforcement |
Introduction to Tunnel Lining Concrete Solutions
High-density concrete offers enhanced radiation shielding and durability, making it ideal for tunnel lining in nuclear and industrial applications. Self-compacting concrete provides superior flowability and uniformity, reducing formwork pressure and eliminating the need for vibration during placement. Both concrete types optimize structural integrity and construction efficiency, tailored to specific tunnel lining requirements.
Defining High-Density Concrete: Properties and Applications
High-density concrete (HDC) incorporates heavy aggregates like barite, magnetite, or hematite, resulting in a density typically between 3,800 to 5,000 kg/m3, significantly higher than normal concrete. This increased density imparts superior radiation shielding, enhanced durability, and improved compressive strength, making HDC ideal for tunnel lining in environments requiring protection against nuclear radiation or heavy mechanical loads. Compared to self-compacting concrete (SCC), which is prized for its flowability and ease of placement, HDC offers unique advantages in high-loading conditions where structural integrity and density are paramount.
Understanding Self-Compacting Concrete: Key Characteristics
Self-compacting concrete (SCC) for tunnel lining is characterized by its high flowability, allowing it to fill complex formwork and densely reinforced areas without mechanical vibration. Its homogenous mix minimizes voids and segregation, ensuring superior surface finish and structural integrity in confined tunnel environments. Compared to high-density concrete, SCC provides enhanced workability and reduces labor time while maintaining adequate strength and durability for underground applications.
Performance Requirements for Tunnel Lining Concrete
High-density concrete offers superior radiation shielding and enhanced structural strength crucial for tunnel lining in nuclear or high-load environments, while self-compacting concrete ensures excellent flowability and void-free filling around complex reinforcements. Performance requirements for tunnel lining concrete emphasize durability, impermeability, and mechanical strength, where high-density concrete provides improved resistance to radiation and increased mass, and self-compacting concrete guarantees uniform compaction and reduced construction time without compromising strength. Selecting between these concretes depends on site-specific demands such as load conditions, radiation exposure, and construction efficiency for optimal tunnel lining performance.
Strength and Durability Comparison
High-density concrete exhibits superior shielding properties and enhanced compressive strength, making it ideal for tunnel lining requiring high load-bearing capacity and radiation protection. Self-compacting concrete offers excellent workability and uniformity, ensuring complete filling of complex tunnel forms and reducing voids that compromise durability. Both concretes provide high durability, but high-density concrete's increased density and lower permeability give it an edge in long-term resistance to aggressive underground environments.
Workability and Placement Efficiency
High-density concrete offers superior radiation shielding and durability for tunnel lining but presents challenges in workability due to its heavier aggregate content, requiring careful mix design to ensure proper flow and compaction. Self-compacting concrete significantly enhances placement efficiency by eliminating the need for vibration, resulting in faster construction times and reduced labor costs while maintaining uniformity and minimizing voids. Selecting between these concretes depends on balancing the need for high-density properties against the benefits of enhanced flowability and ease of placement.
Permeability and Water Resistance in Tunnel Environments
High-density concrete offers superior permeability resistance due to its compact aggregate structure, reducing water ingress and enhancing tunnel lining durability in high-pressure groundwater conditions. Self-compacting concrete, while facilitating faster and more uniform application through its flowable properties, may exhibit higher permeability if not properly optimized with supplementary cementitious materials or admixtures. Selecting the appropriate concrete type for tunnel lining requires balancing the need for low permeability in water-resistant environments with the operational advantages of self-compacting mixes.
Cost Analysis: Material and Installation
High-density concrete incurs higher material costs due to the inclusion of heavy aggregates like barite or magnetite, which increase density and radiation shielding but escalate raw material expenses significantly. Self-compacting concrete reduces installation labor and time costs by eliminating the need for vibration and facilitating easier placement, crucial in the confined and complex geometry of tunnel linings. While high-density concrete raises overall material costs, self-compacting concrete offers long-term savings through improved workflow efficiency and reduced manpower during tunnel lining construction.
Environmental and Safety Considerations
High-density concrete offers superior radiation shielding and structural strength essential for tunnel linings exposed to high radiation levels, but its heavier weight increases transportation energy and poses handling risks on-site. Self-compacting concrete enhances safety by minimizing manual labor and reducing the need for vibration equipment, lowering noise and operator fatigue while promoting uniform material distribution for improved structural integrity. Environmentally, self-compacting concrete typically reduces energy consumption and emissions during placement, whereas the production of high-density concrete often involves more energy-intensive materials such as barytes or magnetite aggregates.
Selecting the Optimal Concrete Type for Tunnel Lining
High-density concrete offers superior radiation shielding and structural strength, making it ideal for tunnels requiring enhanced durability and protection, such as nuclear power plants or underground facilities near radiation sources. Self-compacting concrete excels in complex tunnel geometries due to its high flowability, minimizing voids and ensuring uniform lining without mechanical vibration, thus accelerating installation and improving surface finish quality. Selecting the optimal concrete type depends on project requirements: prioritize high-density concrete for strength and shielding, and self-compacting concrete for ease of placement and intricate shapes.

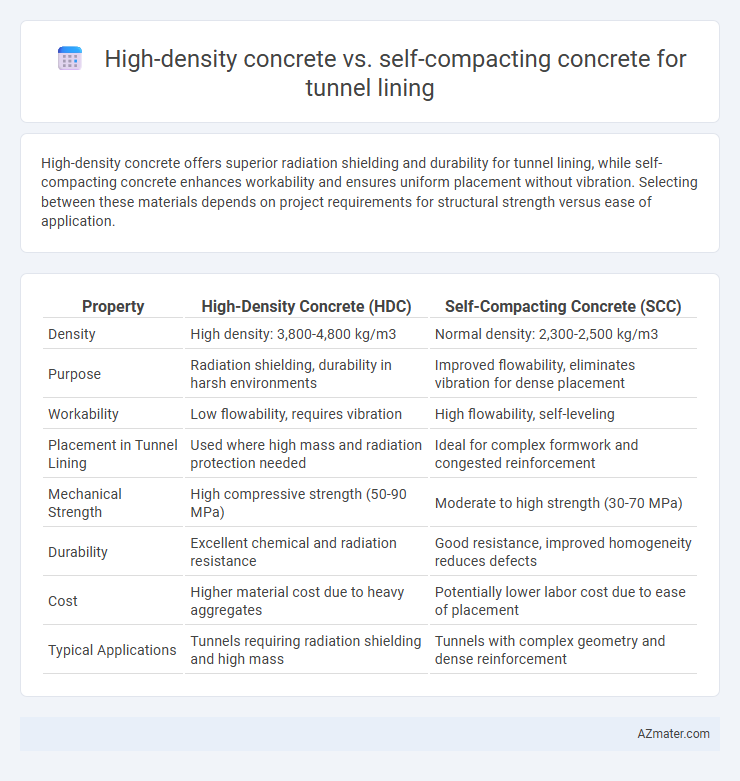

Infographic: High-density concrete vs Self-compacting concrete for Tunnel lining
