Cellular concrete vs. fiber-reinforced concrete for slab. - What is The Difference?

Cellular concrete offers lightweight thermal insulation and reduced dead load for slabs, while fiber-reinforced concrete enhances tensile strength and crack resistance. Selecting the optimal material depends on slab performance requirements such as load-bearing capacity and thermal properties.

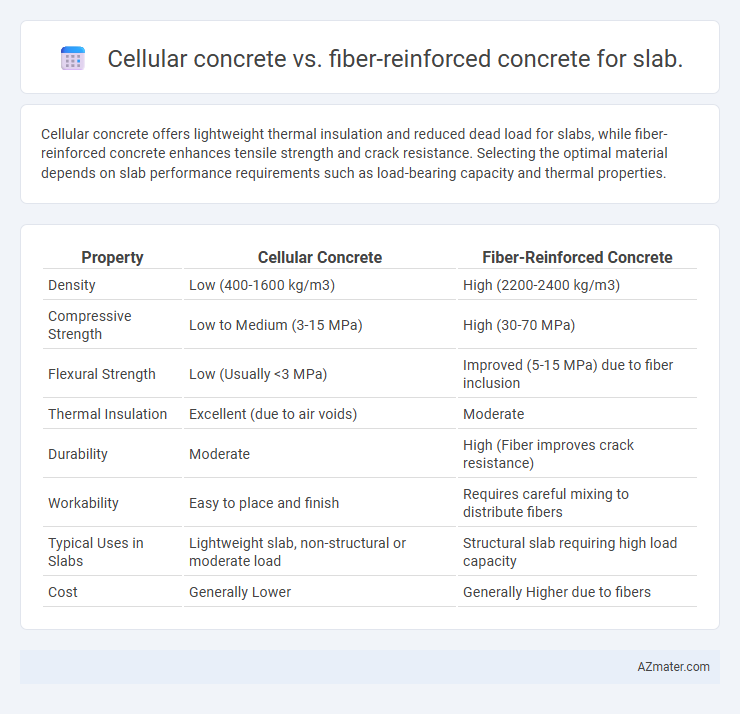

Table of Comparison

Introduction to Cellular Concrete and Fiber-Reinforced Concrete

Cellular concrete is a lightweight, aerated material created by mixing cement slurry with a foaming agent, resulting in enhanced thermal insulation and reduced dead load for slabs. Fiber-reinforced concrete incorporates synthetic or steel fibers into the concrete mix to improve tensile strength, crack resistance, and durability in slab applications. Both materials offer tailored mechanical properties, where cellular concrete prioritizes weight reduction and insulation, while fiber-reinforced concrete focuses on structural performance and toughness.

Composition and Raw Materials

Cellular concrete consists primarily of cement, water, fine aggregates, and a foaming agent that introduces air bubbles, resulting in lightweight, low-density material ideal for slabs requiring thermal insulation and reduced dead load. Fiber-reinforced concrete incorporates traditional concrete mix with the addition of synthetic or steel fibers, such as polypropylene or steel microfibers, to enhance tensile strength, toughness, and crack resistance in slab applications. The composition differences directly impact performance, with cellular concrete focusing on porosity and lightweight properties, while fiber-reinforced concrete emphasizes mechanical reinforcement through fiber dispersion in the matrix.

Manufacturing Process Comparison

Cellular concrete is manufactured by mixing cement, water, and a foaming agent to create a lightweight, aerated material with uniformly distributed air bubbles, whereas fiber-reinforced concrete incorporates synthetic or steel fibers into a conventional concrete mix to enhance tensile strength and crack resistance. The foaming process in cellular concrete requires specialized mixing equipment to generate stable bubbles, while fiber-reinforced concrete relies on careful fiber dispersion during batching to prevent clumping. Manufacturing cellular concrete emphasizes density control and air content, whereas fiber-reinforced concrete focuses on maintaining fiber distribution within the slurry for optimal mechanical performance in slabs.

Mechanical Properties and Load-Bearing Capacity

Cellular concrete offers lightweight characteristics with compressive strengths typically ranging from 3 to 10 MPa, suitable for non-structural slabs, but its load-bearing capacity is limited compared to fiber-reinforced concrete. Fiber-reinforced concrete enhances mechanical properties by improving tensile strength, flexural strength, and crack resistance, often achieving compressive strengths between 30 to 50 MPa, making it ideal for structural slab applications requiring higher durability and load performance. The integration of fibers such as steel, glass, or synthetic materials increases the toughness and impact resistance of slabs, resulting in superior load distribution and reduced potential for failure under dynamic loads.

Thermal and Acoustic Insulation Performance

Cellular concrete offers superior thermal insulation due to its lightweight, porous structure, reducing heat transfer in slab applications. Fiber-reinforced concrete enhances acoustic performance by damping vibrations and absorbing sound waves through embedded fibers. While cellular concrete excels in insulating properties, fiber-reinforced concrete provides improved durability and sound attenuation for slabs in both residential and commercial buildings.

Crack Resistance and Durability

Cellular concrete offers excellent crack resistance due to its lightweight and uniform pore structure, reducing stress concentrations in slabs. Fiber-reinforced concrete enhances durability by distributing fibers throughout the matrix, increasing tensile strength and controlling crack propagation effectively. Both materials improve slab performance, but fiber-reinforced concrete provides superior long-term durability under dynamic loads and harsh environmental conditions.

Weight and Structural Implications for Slabs

Cellular concrete weighs significantly less than fiber-reinforced concrete, typically ranging from 400 to 1600 kg/m3 compared to 2200 to 2500 kg/m3 for fiber-reinforced concrete, making it ideal for slab applications where reduced dead load is critical. The lightweight nature of cellular concrete decreases the structural demand on foundations and supporting elements, whereas fiber-reinforced concrete enhances slab tensile strength and crack resistance without major weight reduction. Choosing between these materials depends on balancing the need for weight savings with enhanced mechanical performance for slab durability and longevity.

Cost Comparison and Economic Considerations

Cellular concrete offers significant cost savings in slab construction due to its lightweight nature, reducing foundation and transportation expenses, whereas fiber-reinforced concrete generally involves higher upfront material costs because of the specialized fibers. The economic advantage of cellular concrete increases in large-scale projects where reduced labor and faster pour times lower overall costs, while fiber-reinforced concrete enhances durability and crack resistance, potentially reducing long-term maintenance expenses. Evaluating total life-cycle costs, cellular concrete is often preferred for budget-sensitive projects, but fiber-reinforced concrete delivers value in applications requiring enhanced mechanical performance and longevity.

Applications and Suitability for Slab Construction

Cellular concrete, with its lightweight and excellent thermal insulation properties, is ideal for non-structural slab applications such as underlayment and roof decks, where load-bearing is minimal. Fiber-reinforced concrete offers enhanced tensile strength and crack resistance, making it more suitable for structural slabs requiring durability and load-bearing capacity in industrial floors and pavements. The choice between cellular and fiber-reinforced concrete depends on specific performance requirements, with fiber reinforcement preferred for slabs exposed to high stress and cellular concrete favored for weight-sensitive, insulating slabs.

Environmental Impact and Sustainability

Cellular concrete significantly reduces environmental impact by utilizing lightweight, aerated materials that decrease raw material consumption and offer superior thermal insulation, minimizing energy use in buildings. Fiber-reinforced concrete (FRC) enhances durability and lifespan of slabs, reducing maintenance and replacement frequency, which indirectly conserves resources and lowers carbon footprint over time. Both materials contribute to sustainable construction, but cellular concrete excels in minimizing embodied energy while FRC focuses on structural resilience and long-term performance.
