azmater.com Cellular concrete offers lightweight thermal insulation and fire resistance for floor slabs, while fiber-reinforced concrete enhances tensile strength and crack resistance, improving structural durability. Selecting between the two depends on priorities like thermal performance versus load-bearing capacity.
Table of Comparison
| Property | Cellular Concrete | Fiber-Reinforced Concrete |
|---|---|---|
| Density | Lightweight (400-1600 kg/m3) | Normal to slightly higher (2200-2500 kg/m3) |
| Compressive Strength | Low to moderate (1-15 MPa) | High (25-50 MPa) |
| Thermal Insulation | Excellent due to air voids | Moderate |
| Flexural Strength | Low | High due to fiber reinforcement |
| Durability | Moderate | High, improved crack resistance |
| Weight Impact on Floor Slabs | Reduces dead load significantly | Increases slab strength without major weight change |
| Application | Non-structural or lightweight slabs | Structural slabs requiring enhanced toughness |
| Cost | Moderate, depends on density | Higher due to fibers |
Overview of Cellular Concrete and Fiber-Reinforced Concrete
Cellular concrete is a lightweight material composed of cement, water, and foaming agents, offering excellent thermal insulation and reduced dead load for floor slabs. Fiber-reinforced concrete incorporates synthetic or steel fibers to improve tensile strength, crack resistance, and durability in flooring applications. Both materials enhance structural performance, with cellular concrete prioritizing insulation and weight reduction, while fiber-reinforced concrete focuses on mechanical robustness and longevity.
Key Material Properties Comparison
Cellular concrete offers lightweight properties with a density range of 400-1600 kg/m3, providing excellent thermal insulation and fire resistance, while fiber-reinforced concrete typically has a higher density around 2200-2500 kg/m3 and enhanced tensile strength due to embedded fibers such as steel, glass, or synthetic materials. The compressive strength of cellular concrete is generally lower, ranging between 1-25 MPa, compared to fiber-reinforced concrete which can achieve 30-70 MPa or more, improving floor slab durability and crack resistance. Fiber-reinforced concrete also exhibits superior flexural toughness and impact resistance, making it suitable for high-load or dynamic floor slab applications where enhanced structural performance is critical.
Strength and Load-Bearing Capabilities
Cellular concrete offers lightweight properties with moderate compressive strength typically ranging from 3 to 12 MPa, making it suitable for non-structural floor slabs with low to moderate load-bearing demands. Fiber-reinforced concrete enhances tensile strength, toughness, and crack resistance, achieving compressive strengths often exceeding 30 MPa, which supports higher structural loads in floor slabs. For floor slab applications requiring superior strength and load-bearing capabilities, fiber-reinforced concrete provides a more robust solution compared to cellular concrete.
Weight and Density Differences
Cellular concrete exhibits significantly lower density, typically ranging from 400 to 1600 kg/m3, compared to fiber-reinforced concrete, which has a density close to traditional concrete around 2400 kg/m3, making it ideal for lightweight floor slabs requiring reduced structural load. The reduced weight of cellular concrete enhances thermal insulation and acoustic properties, while fiber-reinforced concrete offers superior tensile strength and crack resistance due to the embedded fibers. Selecting between these materials depends on balancing the need for lightweight characteristics versus enhanced durability and load-bearing performance in floor slab applications.
Thermal and Acoustic Insulation Performance
Cellular concrete offers superior thermal insulation for floor slabs due to its low density and high air content, significantly reducing heat transfer and helping maintain indoor temperature stability. Fiber-reinforced concrete, while primarily enhancing structural integrity and crack resistance, provides moderate acoustic insulation by dampening vibrations and impact noise. For optimal thermal and acoustic performance in floor slabs, cellular concrete outperforms fiber-reinforced concrete in insulation properties, making it ideal for energy-efficient and sound-controlled building environments.
Durability and Crack Resistance
Cellular concrete offers lightweight properties and moderate durability but is prone to shrinkage cracks under load, making it less ideal for high-traffic floor slabs. Fiber-reinforced concrete significantly enhances crack resistance and toughness by distributing stresses and controlling crack propagation, resulting in superior durability for floor slab applications. Performance of fiber-reinforced concrete in resisting thermal and mechanical stresses ensures longer service life and reduced maintenance compared to cellular concrete.
Installation Process and Workability
Cellular concrete offers lightweight properties and excellent flowability, making it easy to pump and pour for floor slab installation, reducing labor time and minimizing the need for vibration. Fiber-reinforced concrete enhances tensile strength and crack resistance but requires thorough mixing to evenly distribute fibers, which can complicate placement and finishing processes. Workability in fiber-reinforced concrete depends on fiber type and dosage, often demanding adjustments in mix design to maintain smooth installation compared to the highly workable cellular concrete.
Cost Analysis and Economic Considerations
Cellular concrete offers lower material costs and reduced labor expenses due to its lightweight nature and ease of installation compared to fiber-reinforced concrete, which generally requires higher upfront investment for fibers and specialized mixing processes. However, fiber-reinforced concrete provides enhanced durability and reduced maintenance costs over time, potentially offsetting initial expenses through extended service life in floor slabs subjected to heavy loads and frequent use. Economic considerations should weigh immediate budget constraints against long-term performance benefits, factoring in lifecycle costs, project scale, and specific structural requirements.
Typical Applications in Floor Slab Construction
Cellular concrete is commonly used in floor slab construction for lightweight fill, sound insulation, and thermal insulation in industrial and commercial buildings, offering excellent flowability and self-leveling properties. Fiber-reinforced concrete enhances floor slab durability by improving tensile strength and crack resistance, making it ideal for high-traffic areas such as warehouses, parking garages, and industrial floors. Both materials are selected based on structural requirements, with cellular concrete preferred for non-load-bearing slabs and fiber-reinforced concrete for slabs needing increased mechanical performance.
Environmental Impact and Sustainability
Cellular concrete significantly reduces environmental impact due to its lightweight composition, which lowers raw material consumption and transportation energy compared to fiber-reinforced concrete. Fiber-reinforced concrete offers enhanced durability and longevity, potentially extending floor slab service life and minimizing frequent repairs or replacements. Both materials contribute to sustainability, with cellular concrete promoting energy-efficient construction and fiber-reinforced concrete enhancing structural resilience, thereby reducing overall lifecycle carbon emissions.

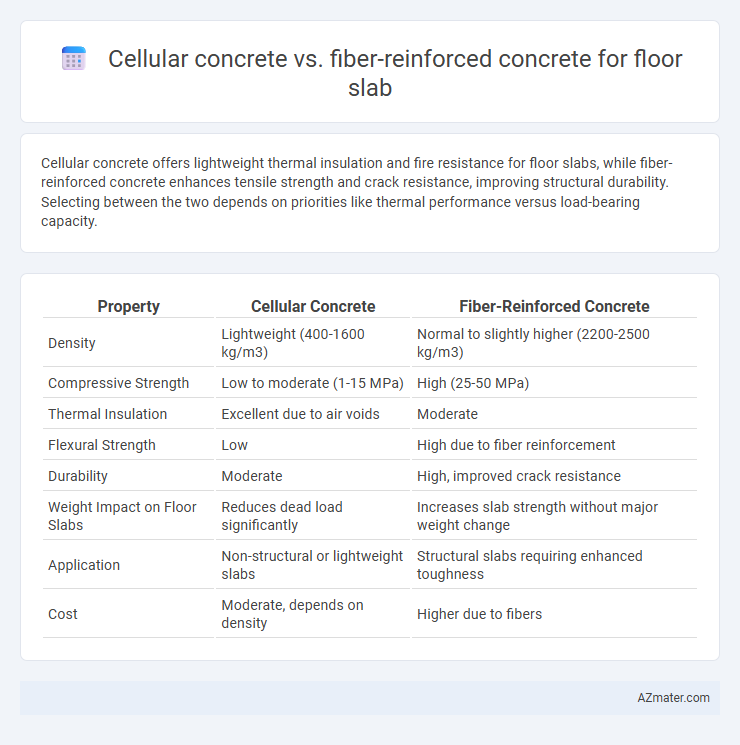

Infographic: Cellular concrete vs Fiber-reinforced concrete for Floor slab
