azmater.com Blast-resistant concrete offers superior impact absorption and enhanced structural integrity compared to shotcrete, making it ideal for high-risk tunnel linings. Shotcrete provides rapid application and excellent adhesion but lacks the specialized toughness required for blast protection in tunnel environments.
Table of Comparison
| Property | Blast-Resistant Concrete | Shotcrete |
|---|---|---|
| Purpose | Designed to withstand explosive blasts and dynamic loads in tunnels | Sprayed concrete for rapid application and structural support in tunneling |
| Material Composition | High-strength mix with fibers, additives for energy absorption | Portland cement-based mix with accelerators and sometimes fibers |
| Installation Method | Poured or pre-cast concrete layers with controlled placement | Wet or dry mix sprayed pneumatically onto tunnel surfaces |
| Blast Resistance | High resistance, engineered for impact and shock wave mitigation | Moderate resistance; enhanced with fiber-reinforcement but primarily structural |
| Setting Time | Standard curing times, often extended for strength optimization | Rapid setting due to accelerators, suitable for quick support |
| Surface Finish | Smooth, uniform for structural integrity and watertightness | Rougher texture, may require additional finishing for aesthetics |
| Application Areas | Main tunnel linings requiring blast protection | Temporary or permanent linings, repairs, irregular surfaces |
| Cost | Higher due to specialized materials and processing | Lower cost, faster application reduces labor expenses |
Introduction to Tunnel Lining Materials
Tunnel lining materials play a critical role in ensuring structural integrity and safety, with blast-resistant concrete and shotcrete being two prominent options. Blast-resistant concrete offers enhanced durability and energy absorption capabilities, making it ideal for tunnels exposed to explosive forces. Shotcrete provides rapid application and excellent adhesion to uneven surfaces, enabling efficient lining installation in complex tunnel geometries.
Overview of Blast-Resistant Concrete
Blast-resistant concrete is engineered to withstand high-impact forces and explosive loads, making it essential for tunnel linings in high-risk environments. Its composition typically includes high-strength aggregates, fiber reinforcement, and admixtures that enhance energy absorption and crack resistance under blast conditions. This specialized concrete outperforms traditional shotcrete by providing superior durability and protective capabilities against blast-induced structural damage.
Fundamentals of Shotcrete in Tunnel Lining
Shotcrete in tunnel lining involves the pneumatically applied concrete mixture that provides rapid, flexible, and strong support to underground excavations by effectively adhering to irregular tunnel surfaces. Its fundamental advantage in blast-resistant applications lies in its dense, compacted layers, which enhance energy absorption and mitigate spalling under explosive loads. Compared to traditional blast-resistant concrete, shotcrete allows for quicker installation with high adaptability to tunnel geometry, improving structural integrity and reducing construction time.
Comparative Material Properties
Blast-resistant concrete exhibits superior compressive strength and enhanced energy absorption capacity compared to shotcrete, making it more effective in mitigating explosive forces within tunnel linings. Shotcrete, however, offers rapid application and excellent adhesion to irregular surfaces, providing flexibility in construction timelines and complex geometries. While blast-resistant concrete incorporates specialized aggregates and admixtures to improve toughness and durability, shotcrete typically relies on accelerated curing techniques to achieve sufficient early strength.
Structural Performance Under Blast Loads
Blast-resistant concrete exhibits superior structural performance under blast loads by providing enhanced energy absorption and minimized spall compared to shotcrete. Its dense matrix and reinforced composition improve resistance to high-pressure shock waves and fragmentation, critical for tunnel lining applications. Shotcrete, while versatile and quick to apply, often requires additional reinforcement to achieve comparable blast mitigation, making blast-resistant concrete the preferred choice for tunnels exposed to explosive threats.
Installation Methods and Construction Efficiency
Blast-resistant concrete for tunnel lining is typically placed using conventional formwork and casting techniques, ensuring consistent density and strength, which enhances durability against explosive forces. Shotcrete application involves pneumatically spraying a concrete mix directly onto tunnel surfaces, allowing rapid placement and adaptability to complex geometries, which significantly improves construction speed and reduces labor costs. The choice between blast-resistant concrete and shotcrete impacts overall project timelines, with shotcrete offering superior installation efficiency for irregular tunnel shapes while conventional blast-resistant concrete provides optimized blast protection through controlled layering.
Cost Analysis and Lifecycle Considerations
Blast-resistant concrete offers higher upfront costs compared to shotcrete due to specialized materials and enhanced mix design tailored to withstand explosive forces in tunnel lining applications. Shotcrete presents lower initial installation costs and faster application rates, making it economically attractive for projects with tight schedules or temporary support needs, but may require more frequent maintenance or replacement in blast-prone environments. Lifecycle considerations emphasize blast-resistant concrete's superior durability and reduced long-term repair expenses, whereas shotcrete's cost-effectiveness depends on balancing short-term savings against potential lifecycle performance compromises.
Durability and Maintenance Requirements
Blast-resistant concrete offers superior durability due to its high compressive strength and dense microstructure, making it highly effective in withstanding explosive forces and minimizing maintenance needs over the tunnel's lifespan. Shotcrete, while easier and faster to apply, tends to have lower durability under blast loading, often requiring more frequent inspections and repairs to address spalling and cracking. Maintenance of blast-resistant concrete is generally less intensive, reducing lifecycle costs compared to the more maintenance-intensive shotcrete used in tunnel linings.
Safety and Regulatory Compliance
Blast-resistant concrete offers superior structural integrity and energy absorption, significantly enhancing tunnel lining safety under explosive loads. Shotcrete, while providing rapid application and flexible reinforcement, may require additional layers or additives to meet stringent blast resistance standards. Regulatory compliance often mandates specific performance criteria where blast-resistant concrete surpasses shotcrete, ensuring adherence to safety codes and reducing risk in high-threat environments.
Application Scenarios and Best Practices
Blast-resistant concrete offers superior durability and enhanced structural integrity for tunnels exposed to high-impact explosive forces, making it ideal for military, mining, and critical infrastructure projects. Shotcrete provides flexibility and speed in application, especially suited for complex geometries and rapid tunnel support in civil construction and emergency repairs. Best practices involve assessing threat levels and environmental conditions to determine the optimal lining type, with blast-resistant concrete requiring meticulous mix design and reinforcement, while shotcrete benefits from skilled application using wet or dry spraying techniques for optimal adhesion and strength.

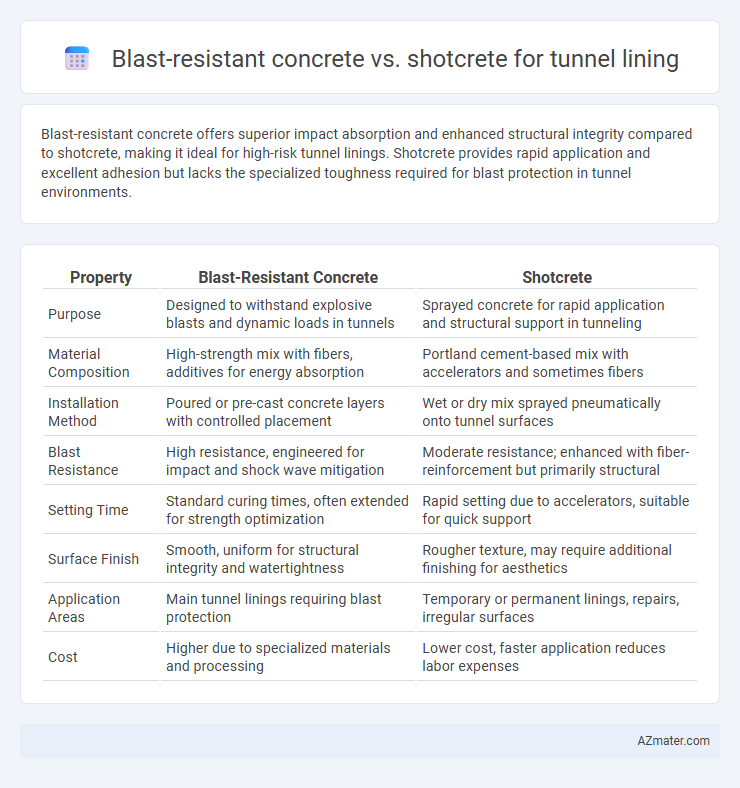

Infographic: Blast-resistant concrete vs Shotcrete for Tunnel lining
