azmater.com 3D-printed concrete offers precise layer control and customizable reinforcement, enhancing structural repair durability compared to traditional shotcrete. Shotcrete provides rapid application and strong adhesion but lacks the geometric flexibility and material efficiency of 3D-printed concrete.
Table of Comparison
| Feature | 3D-Printed Concrete | Shotcrete |
|---|---|---|
| Application Method | Layer-by-layer extrusion via 3D printer | Pneumatic spraying of concrete mixture |
| Material Composition | Customizable mix optimized for printability and strength | Standard high-performance concrete mix with accelerators |
| Structural Integrity | High precision layering ensures uniform strength and minimal voids | Good compaction but may have variable density and rebound losses |
| Repair Precision | Excellent for complex geometries and targeted reinforcement | Best suited for broad surface repairs and overhead applications |
| Curing Time | Comparable to conventional concrete; may require controlled conditions | Accelerated curing possible due to admixtures |
| Labor and Equipment | Requires specialized 3D printing equipment and skilled operators | Requires shotcrete pump and nozzle, experienced nozzle operator |
| Cost Efficiency | Higher initial equipment cost but reduces material waste | Lower equipment cost but potential for higher rebound waste |
| Common Uses | Precision structural repair, complex formwork, and custom shapes | Large-scale surface repairs, patching, and stabilization works |
Introduction to Structural Repair Methods
3D-printed concrete and shotcrete represent advanced methods for structural repair, each offering unique advantages in application and performance. 3D-printed concrete allows precise layering and complex geometries, enabling customized repairs with minimal material waste, while shotcrete provides rapid application and excellent adhesion to existing surfaces, making it ideal for urgent restoration projects. Both methods enhance structural integrity by filling cracks, restoring load-bearing capacity, and extending the lifespan of concrete elements in infrastructure maintenance.
Overview of 3D-Printed Concrete Technology
3D-printed concrete technology utilizes layered extrusion to build precise, customizable structural components, offering enhanced design flexibility and reduced material waste compared to traditional methods. Automated printing systems enable rapid construction with improved accuracy and minimal human error, making it suitable for complex repairs in infrastructure. Integration of advanced admixtures enhances durability, ensuring the repaired sections meet or exceed structural performance standards.
Understanding Shotcrete in Construction
Shotcrete, a sprayed concrete method, is widely used for structural repair due to its excellent adhesion, rapid application, and ability to form complex shapes on-site. It provides high compressive strength and durability, making it ideal for stabilizing deteriorated structures such as tunnels, bridges, and retaining walls. Compared to 3D-printed concrete, shotcrete offers more flexibility in repairs involving irregular surfaces and immediate load-bearing requirements.
Material Properties: 3D-Printed Concrete vs Shotcrete
3D-printed concrete offers enhanced precision and uniformity in layer deposition, resulting in improved compressive strength and reduced material waste compared to shotcrete. Shotcrete exhibits excellent adhesion and rapid setting times, which are critical for overhead and vertical structural repairs, but it may have higher porosity and lower tensile strength. The rheology of 3D-printed concrete allows customized mix designs with optimized fiber reinforcement, enhancing ductility and crack resistance beyond traditional shotcrete properties.
Application Techniques and Equipment
3D-printed concrete employs layer-by-layer extrusion through robotic nozzles, enabling precise placement and complex geometries without formwork, which contrasts with shotcrete's pneumatic spraying method that propels concrete at high velocity onto surfaces using air compressors and spray guns. The equipment for 3D-printed concrete includes gantry or robotic arms integrated with CAD-based controls, allowing automated, programmable construction, whereas shotcrete relies on portable spraying machines and skilled operators to manually apply concrete manually or wet mix. Application techniques in 3D printing reduce material waste and improve structural consistency, while shotcrete's adaptability is favored for overhead and vertical repairs where rapid setting and adhesion to irregular surfaces are critical.
Structural Performance and Durability Comparison
3D-printed concrete offers enhanced structural performance due to its precise layer-by-layer deposition, allowing for optimized reinforcement placement and reduced material waste, which improves load distribution and reduces weak points compared to shotcrete. Shotcrete, while effective for quick repairs and conforming to complex shapes, typically exhibits less uniform density and higher porosity, potentially compromising long-term durability under cyclic loading and harsh environmental conditions. Studies indicate 3D-printed concrete demonstrates superior crack resistance and durability in aggressive environments, making it a more reliable choice for critical structural repairs requiring extended service life.
Speed and Efficiency of Repair Processes
3D-printed concrete significantly accelerates structural repair by enabling precise, layer-by-layer deposition, reducing material waste and labor time compared to shotcrete, which involves spraying concrete onto surfaces and often requires skilled operators for uniform application. The automation in 3D printing minimizes human error and allows for complex geometries to be restored quickly, enhancing repair efficiency. Shotcrete may still be preferred for its adaptability on irregular surfaces, but 3D-printed concrete offers superior control and faster curing times, optimizing overall repair speed.
Sustainability and Environmental Impact
3D-printed concrete for structural repair reduces material waste and energy consumption compared to shotcrete due to its precise layer-by-layer deposition and minimal formwork requirements. Shotcrete often generates higher rebound waste and requires more energy for mixing and spraying, increasing its environmental footprint. The use of recycled aggregates and low-carbon binders in 3D-printed concrete further enhances its sustainability credentials over traditional shotcrete methods.
Cost Analysis and Economic Considerations
3D-printed concrete offers precise material usage and reduced labor costs compared to shotcrete, which typically requires extensive workforce and formwork expenses. The initial investment for 3D printing technology is higher, but long-term savings arise from faster application and minimized waste. Economic considerations must weigh the scale of repair projects, as shotcrete remains more cost-effective for smaller, less complex repairs while 3D printing excels in large-scale, intricate structural rehabilitation.
Future Trends and Innovations in Structural Repair
Emerging trends in structural repair highlight the integration of 3D-printed concrete, offering precise material placement and complex geometries unattainable with traditional shotcrete. Innovations such as customized cementitious blends and real-time digital design adjustments enhance repair durability and reduce labor costs. Future advancements are expected to focus on automation, smart sensors embedded within 3D-printed structures, and eco-friendly materials to optimize performance and sustainability.

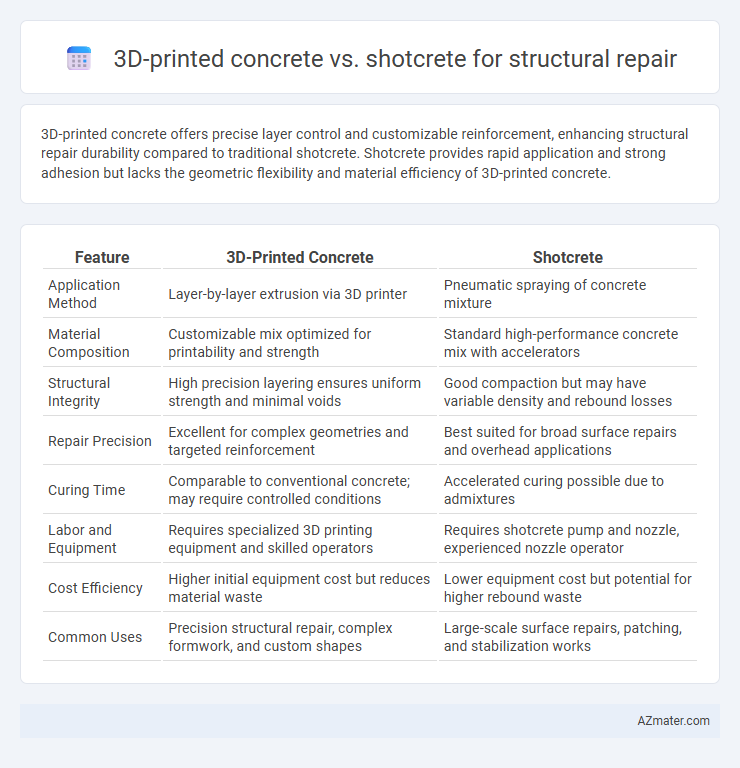

Infographic: 3D-printed concrete vs shotcrete for structural repair
