Piezoelectric ceramic vs. alumina for substrate - What is The Difference?

Piezoelectric ceramic substrates offer superior electromechanical coupling and energy conversion efficiency compared to alumina, which provides higher mechanical strength and better thermal stability. Alumina is preferred for high-temperature applications, while piezoelectric ceramics excel in sensors and actuators due to their responsive piezoelectric properties.

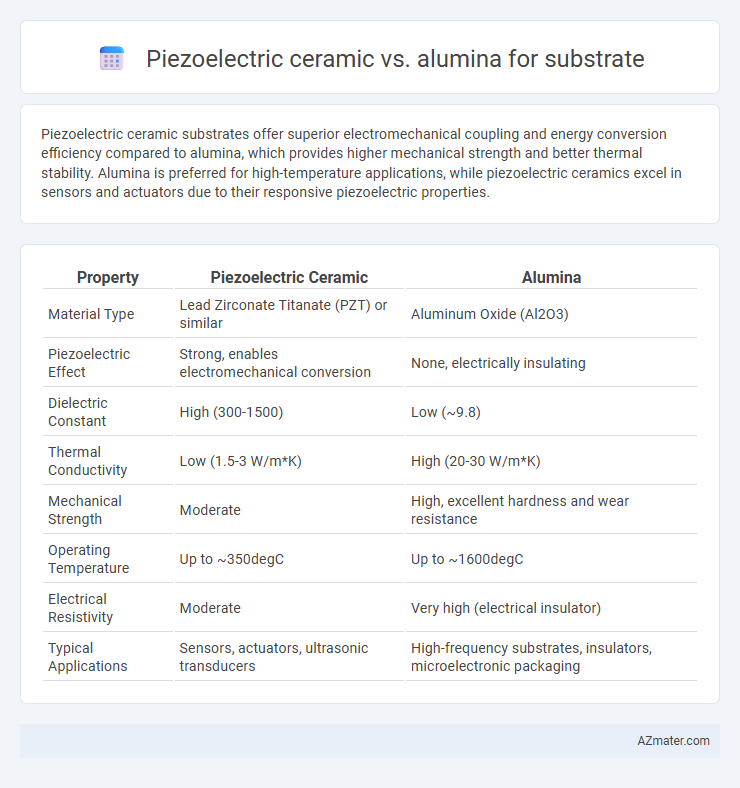

Table of Comparison

Introduction to Substrate Materials in Electronics

Piezoelectric ceramic substrates exhibit high electromechanical coupling coefficients and excellent frequency stability, making them ideal for sensors and actuators in electronic devices. Alumina substrates offer superior thermal conductivity and mechanical strength, providing a robust platform for high-power and high-frequency electronic circuits. Comparing these materials highlights key trade-offs in dielectric properties, mechanical durability, and application-specific performance in electronic substrates.

Overview of Piezoelectric Ceramics as Substrate

Piezoelectric ceramics, such as lead zirconate titanate (PZT), are widely utilized as substrates in electronic and sensor applications due to their ability to convert mechanical energy into electrical signals and vice versa. These ceramics offer high electromechanical coupling coefficients and excellent dielectric properties, enabling precise control and sensitivity in devices like actuators, ultrasonic transducers, and microelectromechanical systems (MEMS). Compared to alumina, piezoelectric substrates provide active functionality, whereas alumina primarily serves as an inert, thermally stable support with superior mechanical strength and insulation properties.

Overview of Alumina as Substrate

Alumina is a widely used substrate material in electronics due to its excellent insulating properties, high thermal conductivity, and mechanical strength, making it ideal for high-power and high-frequency applications. Compared to piezoelectric ceramics, alumina offers superior chemical stability and cost-effectiveness, but lacks inherent piezoelectric properties required for sensor or actuator functions. Its widespread adoption in power modules, microwave components, and integrated circuits underscores alumina's role as a reliable, durable platform for diverse electronic devices.

Key Material Properties Comparison

Piezoelectric ceramics exhibit high piezoelectric coefficients and dielectric permittivity, making them ideal for sensors and actuators, whereas alumina substrates provide superior thermal conductivity and mechanical strength crucial for electronic packaging. The dielectric constant of piezoelectric ceramics typically ranges from 200 to 1500, significantly higher than alumina's 9-10, influencing signal transduction efficiency. Alumina's high thermal stability with melting points above 2000degC and low dielectric loss ensures reliable performance under harsh environmental conditions compared to piezoelectric ceramics.

Thermal Conductivity and Heat Management

Piezoelectric ceramic substrates typically offer moderate thermal conductivity, around 1.2-3 W/m*K, which limits efficient heat dissipation in high-power applications. Alumina substrates exhibit significantly higher thermal conductivity, ranging from 20 to 30 W/m*K, enabling superior heat management and enhanced thermal stability. This distinct difference makes alumina more suitable for devices requiring effective thermal management to avoid overheating and maintain performance.

Electrical Performance and Insulation

Piezoelectric ceramic substrates exhibit superior electrical performance with higher dielectric constants and enhanced electromechanical coupling compared to alumina, making them ideal for sensors and actuators requiring efficient signal transduction. Alumina provides excellent electrical insulation with a high resistivity and low dielectric loss, ensuring stable performance in high-voltage or high-temperature environments. Choosing between piezoelectric ceramic and alumina substrates depends on the application's need for either active electrical responsiveness or reliable electrical insulation.

Mechanical Strength and Durability

Piezoelectric ceramic substrates exhibit high mechanical strength and excellent durability, making them ideal for applications requiring precise vibration control and longevity under cyclic stress. Alumina substrates, known for their superior hardness and wear resistance, offer enhanced durability but may have lower fracture toughness compared to piezoelectric ceramics. The choice between these materials depends on the balance between mechanical strength requirements and specific environmental conditions such as thermal stability and mechanical shock resistance.

Application Suitability: Piezoelectric Ceramics vs Alumina

Piezoelectric ceramics excel in applications requiring precise vibration control, sensing, and actuation due to their inherent ability to convert mechanical stress into electrical signals, making them ideal for sensors, actuators, and ultrasonic transducers. Alumina substrates provide superior thermal conductivity, electrical insulation, and mechanical strength, supporting applications in high-frequency electronics, microwave circuits, and power modules where dimensional stability and heat dissipation are critical. Selecting between piezoelectric ceramics and alumina depends on application-specific demands: piezoelectric ceramics suit electromechanical energy conversion, while alumina is preferred for robust, thermally managed, high-frequency electronic substrates.

Cost-Effectiveness and Manufacturing Considerations

Piezoelectric ceramic substrates offer higher electromechanical coupling and sensitivity, making them ideal for precision sensing applications, but their manufacturing involves complex processes that increase costs. Alumina substrates provide excellent thermal stability and mechanical strength with lower production costs due to mature fabrication techniques, making them more cost-effective for high-volume applications. Choosing between piezoelectric ceramic and alumina depends on balancing performance requirements against budget constraints and manufacturing scalability.

Conclusion: Selecting the Optimal Substrate Material

Piezoelectric ceramic substrates excel in applications requiring high electromechanical coupling and sensitivity, making them ideal for sensors and actuators. Alumina substrates offer superior thermal stability, electrical insulation, and mechanical strength, beneficial for high-frequency and high-power devices. The optimal substrate choice depends on specific device requirements, balancing piezoelectric performance with thermal and mechanical properties for reliability and efficiency.
