azmater.com Ferroelectric ceramics offer high dielectric constants and tunable permittivity, enhancing energy storage and miniaturization in inductors. Ferrite ceramics provide superior magnetic permeability and low core losses, making them ideal for high-frequency inductor applications.
Table of Comparison
| Property | Ferroelectric Ceramic | Ferrite Ceramic |
|---|---|---|
| Magnetic Permeability | Low to Moderate | High |
| Dielectric Constant | High (100-10,000) | Low to Moderate (10-100) |
| Loss Tangent | Moderate to High | Low |
| Saturation Magnetization | Negligible | Significant (up to 5000 Gauss) |
| Frequency Range | Low to Mid-frequency | Wide (up to GHz) |
| Temperature Stability | Moderate | High |
| Applications | Capacitors, sensors, actuators | Inductors, transformers, EMI filters |
Introduction to Ferroelectric and Ferrite Ceramics
Ferroelectric ceramics exhibit spontaneous electric polarization that can be reversed by an external electric field, making them ideal for applications in capacitors and sensors due to their high dielectric constants and tunable properties. Ferrite ceramics, composed primarily of iron oxide combined with metallic elements, possess high magnetic permeability and low electrical conductivity, which are essential characteristics for efficient inductors and magnetic cores. Understanding the fundamental electric and magnetic behaviors of ferroelectric and ferrite ceramics helps optimize inductor performance in electronic circuits by selecting materials with appropriate dielectric or magnetic properties.
Fundamental Properties of Ferroelectric Ceramics
Ferroelectric ceramics exhibit high dielectric constants, significant spontaneous polarization, and strong electric field-induced strain, making them ideal for applications requiring tunable capacitance and energy storage. Unlike ferrite ceramics, which are primarily magnetic with high permeability and low dielectric loss, ferroelectric ceramics provide excellent piezoelectric and pyroelectric properties that enhance inductor performance through improved dielectric responsiveness. Their unique ability to undergo reversible polarization switching under an electric field distinguishes ferroelectric ceramics as key materials for advanced tunable inductors and multifunctional devices.
Key Characteristics of Ferrite Ceramics
Ferrite ceramics exhibit high magnetic permeability and low electrical conductivity, which significantly reduce eddy current losses in inductors operating at high frequencies. Their excellent temperature stability and low core losses make them ideal for power inductors and transformers. Compared to ferroelectric ceramics, ferrite ceramics offer superior magnetic properties crucial for efficient energy storage and signal filtering in inductors.
Material Composition and Crystal Structure
Ferroelectric ceramics are primarily composed of perovskite-type oxides such as barium titanate (BaTiO3), characterized by a non-centrosymmetric crystal structure allowing spontaneous electric polarization, which enhances dielectric properties. Ferrite ceramics consist mainly of spinel or inverse spinel structured iron oxides, typically magnetite (Fe3O4) or substituted variants like manganese-zinc (MnZn) or nickel-zinc (NiZn) ferrites, offering high magnetic permeability and low electrical conductivity. The crystal structure of ferrite ceramics supports magnetic domain formation essential for inductive components, whereas ferroelectric ceramics' polar crystal lattice optimizes dielectric behavior but limits their magnetic performance in inductors.
Electrical and Magnetic Behavior Comparison
Ferroelectric ceramics exhibit high dielectric constants and strong electric polarization, making them suitable for capacitive applications but less effective in magnetic energy storage. Ferrite ceramics demonstrate superior magnetic permeability and low electrical conductivity, which minimizes eddy current losses and enhances inductor efficiency at high frequencies. The contrasting electrical resistivity and magnetic behavior between ferroelectric and ferrite ceramics define their performance trade-offs in inductor applications.
Performance in Inductor Applications
Ferroelectric ceramics exhibit high dielectric constants and low losses, enhancing energy storage and reducing signal distortion in inductor applications, especially at high frequencies. Ferrite ceramics offer superior magnetic permeability and low core losses, making them ideal for efficient inductive energy transfer and minimizing heat generation in power inductors. Performance in inductors depends on the application's frequency range and power requirements, with ferrite ceramics preferred for magnetic core efficiency and ferroelectric ceramics favored for capacitive integration and tuning.
Advantages of Ferroelectric Ceramics for Inductors
Ferroelectric ceramics offer higher dielectric constants and tunable permittivity compared to ferrite ceramics, enabling compact inductor designs with enhanced energy storage capabilities. Their superior electrostrictive properties provide better frequency stability and lower signal loss, making them ideal for high-frequency applications. Additionally, ferroelectric materials exhibit faster polarization response, resulting in improved inductance control and efficiency in advanced electronic circuits.
Benefits of Ferrite Ceramics in Inductor Design
Ferrite ceramics offer superior magnetic permeability and lower eddy current losses compared to ferroelectric ceramics, making them ideal for inductor applications requiring high efficiency and minimal heat generation. Their high resistivity allows stable performance at high frequencies, enhancing signal integrity and reducing electromagnetic interference in electronic circuits. The availability of various ferrite compositions enables designers to optimize inductors for specific inductance values and operating conditions, improving overall device reliability and performance.
Challenges and Limitations of Each Material
Ferroelectric ceramics face challenges such as higher dielectric losses and temperature instability, which can limit their efficiency and reliability in inductor applications. Ferrite ceramics, while offering lower magnetic losses and better frequency response, often suffer from lower saturation magnetization and mechanical brittleness, restricting their power handling capacity and durability. Both materials require careful design considerations to optimize inductor performance under varying electrical and thermal conditions.
Choosing the Right Ceramic for Inductor Efficiency
Ferroelectric ceramics offer high dielectric constants and low losses at high frequencies, making them suitable for inductors requiring efficient energy storage and minimal signal degradation. Ferrite ceramics, characterized by their high magnetic permeability and low eddy current losses, enhance inductance and reduce core losses in high-frequency applications. Selecting the right ceramic depends on the inductor's operating frequency, desired inductance, and efficiency requirements, with ferrite ceramics preferred for magnetic flux management and ferroelectric ceramics optimal for capacitive and dielectric performance.

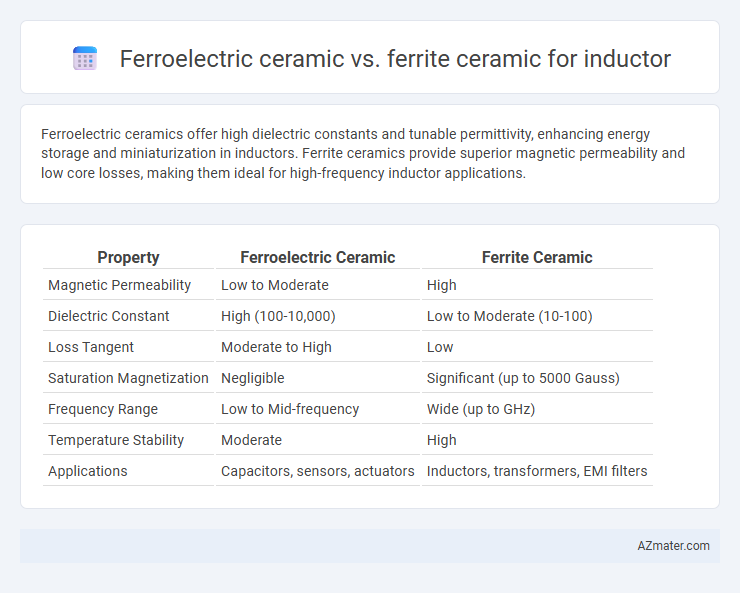

Infographic: Ferroelectric ceramic vs Ferrite ceramic for Inductor
