Aluminum nitride matrix nanocomposite vs. copper for substrate - What is The Difference?

Aluminum nitride matrix nanocomposites offer superior thermal conductivity and electrical insulation compared to copper substrates, making them ideal for high-performance electronic applications. Their low coefficient of thermal expansion and excellent mechanical strength enhance device reliability and longevity.

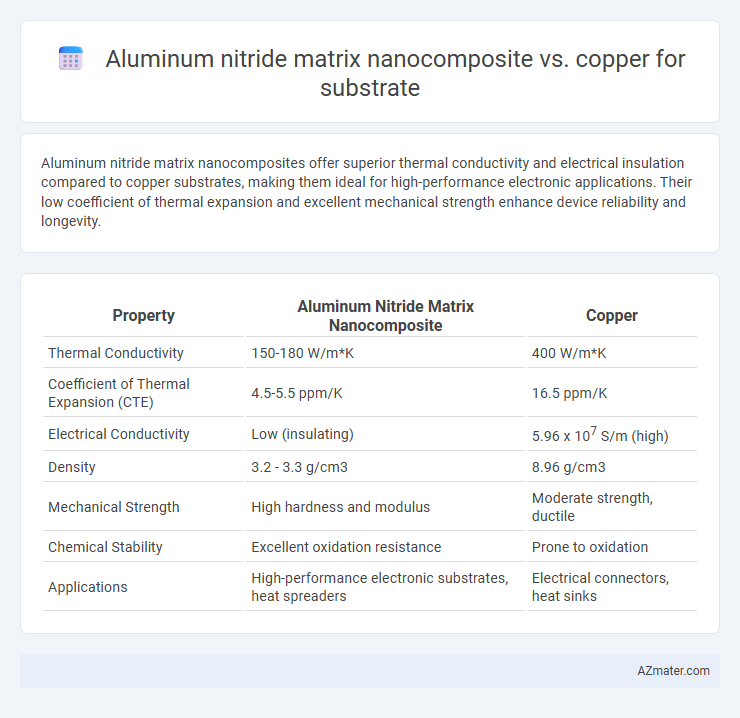

Table of Comparison

Introduction to Substrate Materials in Electronics

Aluminum nitride matrix nanocomposites offer superior thermal conductivity (up to 320 W/mK) combined with low electrical conductivity, making them ideal substrates for high-performance electronics requiring effective heat dissipation and electrical insulation. Copper substrates excel in electrical conductivity (around 5.8 x 10^7 S/m) and mechanical strength but suffer from heavier weight and higher thermal expansion mismatch compared to aluminum nitride composites. The choice between these substrates depends on balancing thermal management, electrical isolation, mechanical stability, and weight considerations in electronic device applications.

Overview of Aluminum Nitride Matrix Nanocomposites

Aluminum nitride matrix nanocomposites exhibit superior thermal conductivity and electrical insulation compared to copper, making them ideal substrates for high-performance electronic applications. Their low thermal expansion coefficient closely matches semiconductor materials, reducing thermal stress and enhancing device reliability. Advanced fabrication techniques enable the integration of nanofillers, further improving mechanical strength and thermal management capabilities.

Properties and Advantages of Copper Substrates

Copper substrates offer superior thermal conductivity, typically around 400 W/mK, compared to aluminum nitride matrix nanocomposites, which range between 150-220 W/mK, enabling more efficient heat dissipation in electronic applications. Copper's excellent electrical conductivity and mechanical malleability also provide advantages for high-performance circuit boards and power devices. Despite aluminum nitride's lower density and better dielectric properties, copper substrates excel in structural durability and compatibility with standard fabrication processes.

Thermal Conductivity Comparison: AlN Nanocomposites vs Copper

Aluminum nitride (AlN) matrix nanocomposites exhibit thermal conductivity values ranging from 170 to 230 W/mK, benefiting from AlN's intrinsic high thermal conductivity and enhanced phonon transport due to nanoscale reinforcement. Copper, with thermal conductivity approximately 400 W/mK, remains superior in pure form; however, AlN nanocomposites provide a lightweight, electrically insulating alternative ideal for high-power electronic substrates. The trade-off in reduced thermal conductivity is offset by improved dielectric properties, enabling efficient heat dissipation while preventing electrical shorting in advanced microelectronics.

Electrical Performance and Suitability

Aluminum nitride matrix nanocomposites exhibit exceptional electrical insulation properties with high thermal conductivity, making them ideal substrates in high-frequency and high-power electronic applications. Copper substrates offer superior electrical conductivity but lack the necessary insulating characteristics, limiting their use where electrical isolation is critical. The choice between aluminum nitride nanocomposites and copper depends on the balance between thermal management needs and electrical insulation requirements in specific device architectures.

Mechanical Strength and Reliability

Aluminum nitride matrix nanocomposites exhibit superior mechanical strength compared to copper substrates due to their high hardness and enhanced fracture toughness, making them more resistant to wear and deformation in demanding applications. The thermal expansion coefficient of aluminum nitride closely matches that of semiconductor materials, reducing thermal stress and improving overall reliability in electronic substrates. Copper, while offering excellent electrical conductivity, is prone to mechanical fatigue and deformation under thermal cycling, which can compromise long-term substrate integrity.

Thermal Expansion Coefficient Mismatch

Aluminum nitride matrix nanocomposites exhibit a significantly lower coefficient of thermal expansion (CTE), typically around 4.5 to 5.5 ppm/degC, compared to copper's higher CTE of approximately 16.5 to 17 ppm/degC, resulting in reduced thermal expansion coefficient mismatch when used as substrate materials in electronic packaging. This lower CTE closely matches that of semiconductor materials like silicon, minimizing thermal stresses and improving reliability during thermal cycling. Copper substrates, while possessing excellent electrical and thermal conductivity, can induce greater mechanical strain due to CTE mismatch, leading to potential delamination or microcracking in multilayer device architectures.

Lightweight Design Benefits

Aluminum nitride matrix nanocomposites offer superior lightweight design benefits compared to copper substrates due to their significantly lower density, approximately 3.3 g/cm3 versus copper's 8.96 g/cm3, enabling weight reduction in electronic and thermal management applications. These nanocomposites maintain high thermal conductivity, often exceeding 140 W/m*K, which is essential for efficient heat dissipation while minimizing material mass. The combination of lightweight properties and excellent thermal performance makes aluminum nitride matrix nanocomposites ideal for aerospace and portable electronics where weight savings are critical.

Cost and Manufacturing Considerations

Aluminum nitride matrix nanocomposites offer lower raw material costs compared to copper substrates, benefiting budget-sensitive applications. Manufacturing processes for aluminum nitride composites often involve advanced powder metallurgy and sintering techniques, which may increase complexity but enable large-scale production with tailored thermal conductivity. Copper substrates, while costlier due to raw material prices and energy-intensive casting or machining methods, provide proven manufacturability and widespread availability in electronics fabrication.

Future Trends and Applications in Substrate Technology

Aluminum nitride matrix nanocomposites exhibit superior thermal conductivity and electrical insulation compared to copper, making them ideal for next-generation substrate technologies in high-power electronics and LED applications. Future trends emphasize optimizing the nanocomposite's microstructure to enhance heat dissipation while maintaining mechanical stability and reducing weight, which is critical for aerospace and automotive electronics. Advances in manufacturing techniques like spark plasma sintering and additive manufacturing are expected to enable scalable production and integration of aluminum nitride nanocomposites, expanding their use in microelectronic packaging and RF substrates.
