azmater.com Liquid crystal polymer (LCP) offers superior moisture resistance and dimensional stability compared to polyimide, enhancing the reliability of flexible circuits in harsh environments. Polyimide provides excellent thermal stability and flexibility, making it a cost-effective choice for flexible circuit applications requiring moderate durability.
Table of Comparison
| Property | Liquid Crystal Polymer (LCP) | Polyimide (PI) |
|---|---|---|
| Thermal Stability | High; withstands up to 300degC | Moderate; up to 250degC |
| Moisture Absorption | Low; excellent resistance | Higher; more prone to moisture |
| Flexibility | Good; suitable for dynamic flexing | Very High; widely used for flexible circuits |
| Chemical Resistance | Excellent; resists many solvents and acids | Good; but can degrade under harsh chemicals |
| Dielectric Constant | Low (~3.0); favorable for high-frequency applications | Moderate (~3.5) |
| Cost | Higher; advanced material | Lower; standard flexible circuit substrate |
| Dimensional Stability | Superior; low thermal expansion | Good; but higher expansion rate |
Introduction to Flexible Circuit Materials
Liquid crystal polymer (LCP) and polyimide (PI) are prominent materials used in flexible circuit substrates due to their excellent electrical properties and mechanical flexibility. LCP offers superior chemical resistance, low moisture absorption, and dimensional stability, making it ideal for high-frequency, high-density applications. Polyimide provides excellent thermal stability, mechanical strength, and cost-effectiveness, widely utilized across various flexible circuit designs for durable and reliable performance.
Overview of Liquid Crystal Polymer (LCP)
Liquid Crystal Polymer (LCP) is a high-performance material known for its excellent mechanical strength, chemical resistance, and low moisture absorption, making it ideal for flexible circuits requiring durability and reliability in harsh environments. LCP offers superior dimensional stability and thermal performance compared to Polyimide, allowing for higher frequency signal transmission and improved electromagnetic interference shielding. Its inherent barrier properties and low dielectric constant contribute to enhanced electrical performance and reduced signal loss in advanced flexible circuit applications.
Overview of Polyimide (PI)
Polyimide (PI) is a high-performance polymer widely used in flexible circuits due to its excellent thermal stability, chemical resistance, and mechanical strength. Its ability to maintain integrity under extreme temperatures up to 400degC makes it ideal for demanding electronic applications. Compared to Liquid Crystal Polymer (LCP), polyimide offers superior flexibility and adhesion properties, which enhance circuit durability and reliability in flexible electronics.
Mechanical Properties Comparison
Liquid crystal polymer (LCP) exhibits superior mechanical strength, high tensile modulus, and excellent dimensional stability compared to polyimide, making it ideal for flexible circuit applications requiring durability under stress. Polyimide offers better flexibility and thermal resistance but demonstrates lower mechanical robustness and higher susceptibility to creep and fatigue over prolonged bending cycles. The enhanced mechanical properties of LCP enable flexible circuits to maintain performance in harsh environments with less deformation and mechanical failure risk.
Thermal Stability and Heat Resistance
Liquid crystal polymer (LCP) offers superior thermal stability with a glass transition temperature often exceeding 280degC, making it highly suitable for flexible circuits subjected to high-temperature environments. Polyimide typically has a glass transition temperature around 200-260degC, providing good, though slightly lower, heat resistance compared to LCP. The enhanced heat resistance of LCP ensures better dimensional stability and longer lifespan in thermal cycling applications than polyimide substrates.
Electrical Performance and Signal Integrity
Liquid crystal polymer (LCP) demonstrates superior electrical performance for flexible circuits due to its low dielectric constant (~2.9) and low dissipation factor, resulting in reduced signal loss and enhanced high-frequency signal integrity compared to polyimide, which typically has a higher dielectric constant (~3.4). LCP's inherent low moisture absorption and stable permittivity contribute to consistent electrical characteristics under various environmental conditions, minimizing signal distortion and crosstalk. In contrast, polyimide's higher dielectric constant and moisture uptake can degrade signal integrity in high-speed applications, making LCP the preferred choice for advanced flexible circuit designs requiring optimal electrical performance.
Moisture Absorption and Chemical Resistance
Liquid crystal polymers (LCP) exhibit significantly lower moisture absorption rates, typically below 0.02%, making them highly suitable for flexible circuits in humid environments compared to polyimide, which absorbs moisture around 2-3%. LCP's superior chemical resistance allows it to withstand aggressive solvents and harsh chemicals without degradation, whereas polyimide is more susceptible to chemical attack and hydrolysis under prolonged exposure. These properties position LCP as a preferred material for flexible circuits requiring exceptional reliability in moisture-prone and chemically challenging applications.
Manufacturability and Process Considerations
Liquid crystal polymer (LCP) offers superior manufacturability for flexible circuits due to its low moisture absorption, excellent chemical resistance, and inherent dimensional stability, which lead to fewer defects during high-precision photolithography and etching processes. Polyimide (PI), while highly flexible and thermally stable, requires more careful moisture control and can experience greater thermal expansion variability, complicating multilayer lamination and via formation. Process considerations favor LCP in high-frequency, high-density applications due to its lower dielectric constant and loss tangent, whereas polyimide remains preferred for cost-sensitive or high-temperature environments despite its more complex handling requirements.
Applications in Flexible Electronics
Liquid crystal polymer (LCP) offers superior chemical resistance, low moisture absorption, and excellent thermal stability, making it ideal for high-frequency flexible circuit applications in smartphones and wearable devices. Polyimide provides outstanding mechanical flexibility and thermal endurance, widely used in flexible printed circuit boards (FPCBs) for medical sensors and flexible displays. Both materials support miniaturization and high reliability in flexible electronics, but LCP excels in high-speed signal integrity while polyimide is preferred for cost-effective, versatile applications.
Cost Analysis and Material Selection Criteria
Liquid crystal polymer (LCP) offers superior chemical resistance and dimensional stability compared to polyimide (PI), but LCP materials generally incur higher raw material and processing costs, impacting overall budget considerations in flexible circuit production. Polyimide remains favored for cost-sensitive applications due to its lower price point and proven thermal stability, despite LCP's advantages in moisture resistance and dielectric properties. Material selection criteria emphasize balancing performance requirements such as thermal endurance, flexibility, and environmental resistance against cost constraints to optimize flexible circuit reliability and manufacturing efficiency.

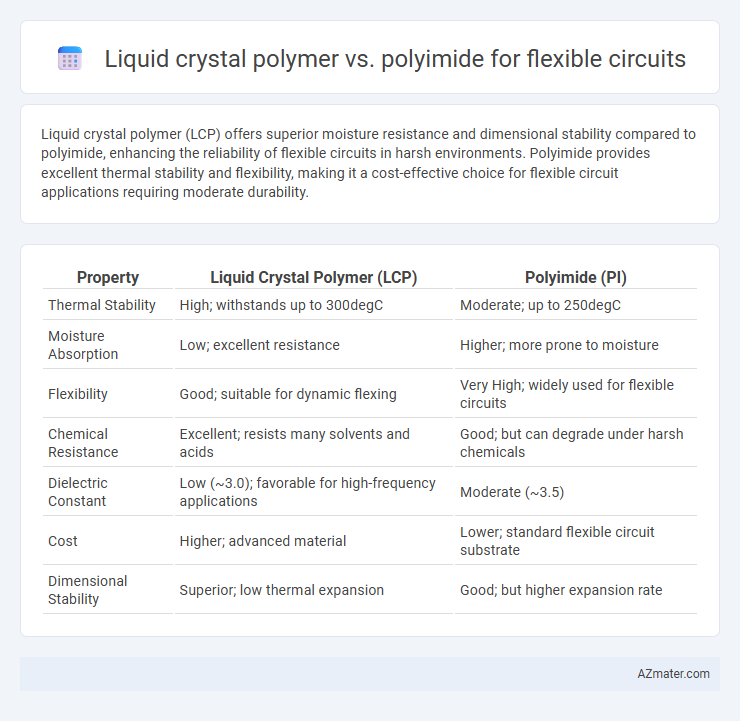

Infographic: Liquid crystal polymer vs Polyimide for Flexible Circuit
