Magnetic ceramic vs. alumina ceramic for circuit substrate - What is The Difference?

Magnetic ceramic substrates offer superior electromagnetic interference (EMI) shielding and high magnetic permeability compared to alumina ceramic, which provides excellent thermal conductivity and electrical insulation. Alumina ceramic is preferred for high-temperature circuit applications, while magnetic ceramics enhance performance in RF circuits requiring magnetic properties.

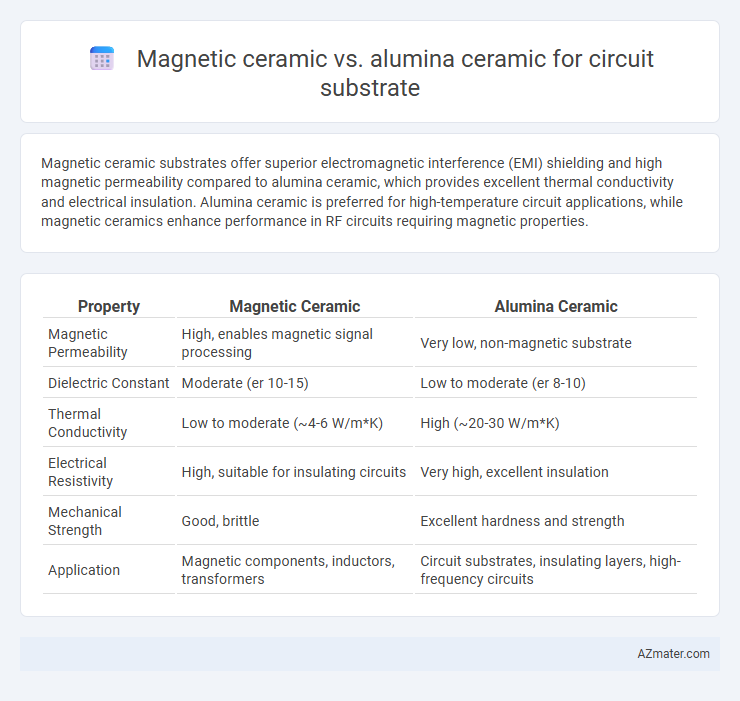

Table of Comparison

Introduction to Ceramic Substrates in Electronics

Magnetic ceramic substrates offer high permeability and magnetic stability, making them ideal for inductors and transformers in high-frequency circuits. Alumina ceramic substrates provide excellent thermal conductivity, electrical insulation, and mechanical strength, widely used in semiconductor packages and power modules. Both materials are essential in electronics, with magnetic ceramics enhancing electromagnetic performance and alumina ceramics ensuring reliable thermal management.

Magnetic Ceramic: Composition and Properties

Magnetic ceramics used in circuit substrates primarily consist of ferrite compounds such as nickel-zinc (NiZn) and manganese-zinc (MnZn) ferrites, which exhibit high magnetic permeability and low electrical conductivity, crucial for minimizing eddy current losses in high-frequency applications. These materials possess excellent thermal stability and mechanical strength, making them suitable for integrated inductors and transformers in RF and microwave circuits. Compared to alumina ceramic, magnetic ceramics offer enhanced magnetic properties but generally have lower dielectric strength and thermal conductivity, requiring careful balancing depending on circuit design requirements.

Alumina Ceramic: Structure and Key Features

Alumina ceramic, widely used as a circuit substrate, exhibits exceptional electrical insulation, high thermal conductivity, and excellent mechanical strength due to its dense, polycrystalline structure primarily composed of aluminum oxide (Al2O3). Its superior heat dissipation capabilities and stable dielectric properties make it ideal for high-frequency and high-power electronic applications, outperforming magnetic ceramics that often have higher magnetic losses and lower thermal stability. The material's resistance to wear, corrosion, and thermal shock further ensures long-term reliability in demanding circuit environments.

Electrical Performance Comparison

Magnetic ceramics exhibit higher magnetic permeability and better inductive properties, making them ideal for RF and microwave circuit substrates where signal integrity is crucial. Alumina ceramic offers superior dielectric strength, low dielectric loss, and excellent thermal conductivity, ensuring stable electrical insulation and heat dissipation in high-frequency electronic applications. The choice between magnetic ceramic and alumina ceramic depends on the specific requirements for inductance versus insulation and thermal management in circuit substrates.

Thermal Conductivity Analysis

Magnetic ceramic substrates typically feature thermal conductivity values ranging from 5 to 15 W/m*K, depending on their specific composition and sintering process, which can limit heat dissipation in high-power circuit applications. Alumina ceramic substrates exhibit significantly higher thermal conductivity, generally between 20 and 30 W/m*K, making them more efficient at managing thermal loads and enhancing device reliability. The improved heat transfer characteristics of alumina ceramics contribute to better thermal management in electronic circuits, reducing the risk of overheating and improving overall performance stability.

Mechanical Strength and Durability

Magnetic ceramic substrates typically exhibit lower mechanical strength but enhanced magnetic properties compared to alumina ceramics, which offer superior hardness and exceptional durability under thermal and mechanical stress. Alumina ceramics possess high fracture toughness and resistance to wear, making them ideal for circuit substrates requiring robust mechanical support. Magnetic ceramics, while beneficial for electromagnetic applications, may require additional protective coatings to achieve comparable longevity in harsh operational environments.

Magnetic Characteristics and Their Impact

Magnetic ceramics exhibit higher permeability and better magnetic loss properties compared to alumina ceramics, making them ideal for circuit substrates requiring efficient electromagnetic interference (EMI) shielding and signal integrity. Alumina ceramics, with low magnetic susceptibility and dielectric losses, provide excellent electrical insulation but lack magnetic properties essential for high-frequency inductive components. The magnetic characteristics of magnetic ceramics improve inductance and reduce core losses, directly impacting the performance of RF circuits and power electronics.

Cost and Manufacturing Considerations

Magnetic ceramics typically exhibit higher production costs due to complex raw materials and sintering processes compared to alumina ceramics, which benefit from established, cost-efficient manufacturing techniques. Alumina ceramics provide excellent thermal conductivity and mechanical strength, making them a more economical choice for circuit substrates in high-volume production. Manufacturing considerations also favor alumina for its compatibility with standard processing equipment and scalability, while magnetic ceramics may require specialized handling and longer cycle times, increasing overall expenditure.

Typical Applications in Circuit Substrates

Magnetic ceramics are typically used in circuit substrates requiring high-frequency inductors and transformers due to their superior magnetic permeability and low eddy current losses. Alumina ceramics excel in applications demanding excellent electrical insulation, high thermal conductivity, and mechanical strength, making them ideal for insulating substrates in power electronics and LED circuits. Both materials are chosen based on the specific electrical, thermal, and mechanical performance requirements of circuit substrates in telecommunications, automotive electronics, and industrial control systems.

Summary: Choosing the Right Ceramic Material

Magnetic ceramic substrates offer excellent permeability and low eddy current losses, ideal for high-frequency circuit applications requiring inductive components. Alumina ceramic provides superior thermal conductivity, electrical insulation, and mechanical strength, making it the preferred choice for general-purpose circuit substrates. Selecting the right ceramic depends on balancing magnetic properties versus thermal and insulation performance to meet specific circuit design requirements.
